Built to Order Fayette MFG. 6,000 or 7,000 lb. Complete Trailer Axle -Straight
Built to Order Fayette MFG. 6,000 or 7,000 lb. Complete Trailer Axle -Straight

Alternative Views:
Our Price: $810.00

Price with Selected Options: $810.00

Stock Status:In Stock

Availability: Please call for Freight /Shipping Pricing
Product Code: FS70866E-Z


Custom Hubface (Ex. 85.25")*:

Custom Spring Center (Ex. 75.50")*:

5,200-7,000 lb. Axle Bolt Pattern*:

5,200-6,000-7,000 lb. Brake Type*:

Spring Seat Orientation*: 		Bottom of axle
Top of axle

Spring Seats Loose -No Rating: 		Axle will NOT be rated

Add Heavy Duty Double Beam Option: 		1/2" Thick 3" OD [Add $165.00]

Camber: 		Camber
No Camber

Tube Wiring Option*: 		Electrical Wire Run Through Axle Tube
No Electrical Wire in Tube

Add on:

Axle Build Processing Time*: 		Rush - Expedited build time M-F * Note: Shipping time not included [Add $150.00]
Standard 1-3 weeks

No Return Acknowledgement*: 		All Trailer Axles are custom built . Please double check all measurements and options before summiting . By checking this box you are acknowledging that you understand that custom axles can not be returned and that all measurements and options are correct.

Qty:
Description

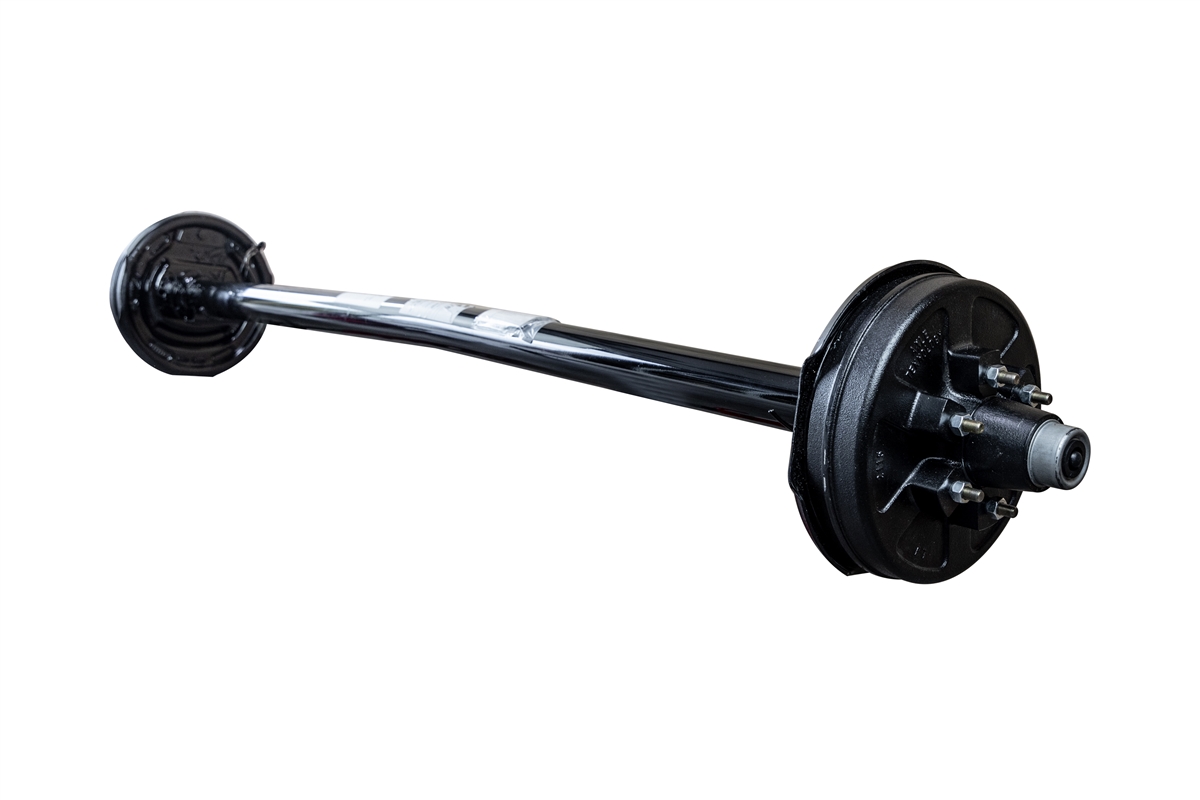

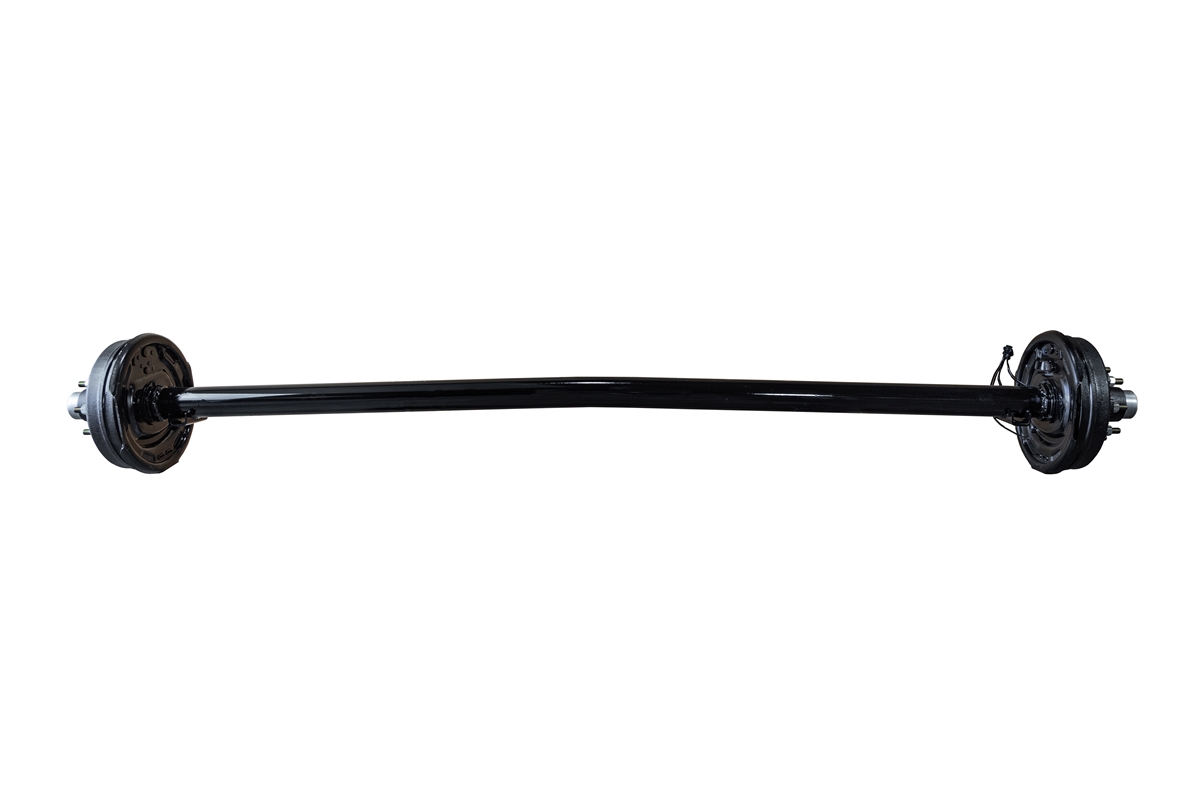

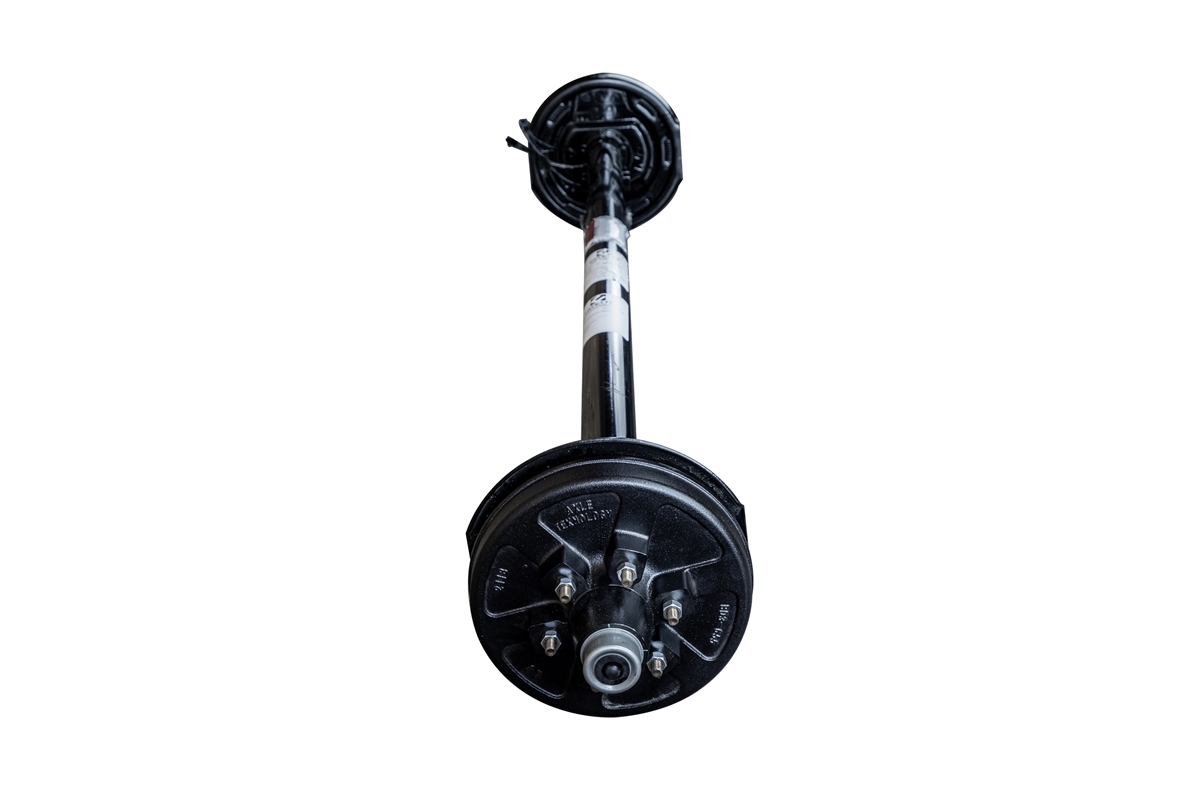

Complete Straight 6,000 or 7,000 lb. Replacement Trailer Axle built to your exact specifications
Complete Axle includes : Axle tube,spindles, brakes or idlers,and pregreased drums and hubs.
Spindles Included Integrated Brake Flange: 5 Bolt for 12" x 2" brakes
Spindles are designed with a patented over tube design which allows for a 40% stronger weld
Axle Beam is cambered to precision
Lubrication: Easy lube spindles with grease Zerk
Made in the USA

Axle Tube: 3" outside diameter -.250" wall tubing

Spindle Size: #42 with grease zerk

Inside components : (Depending on Build)

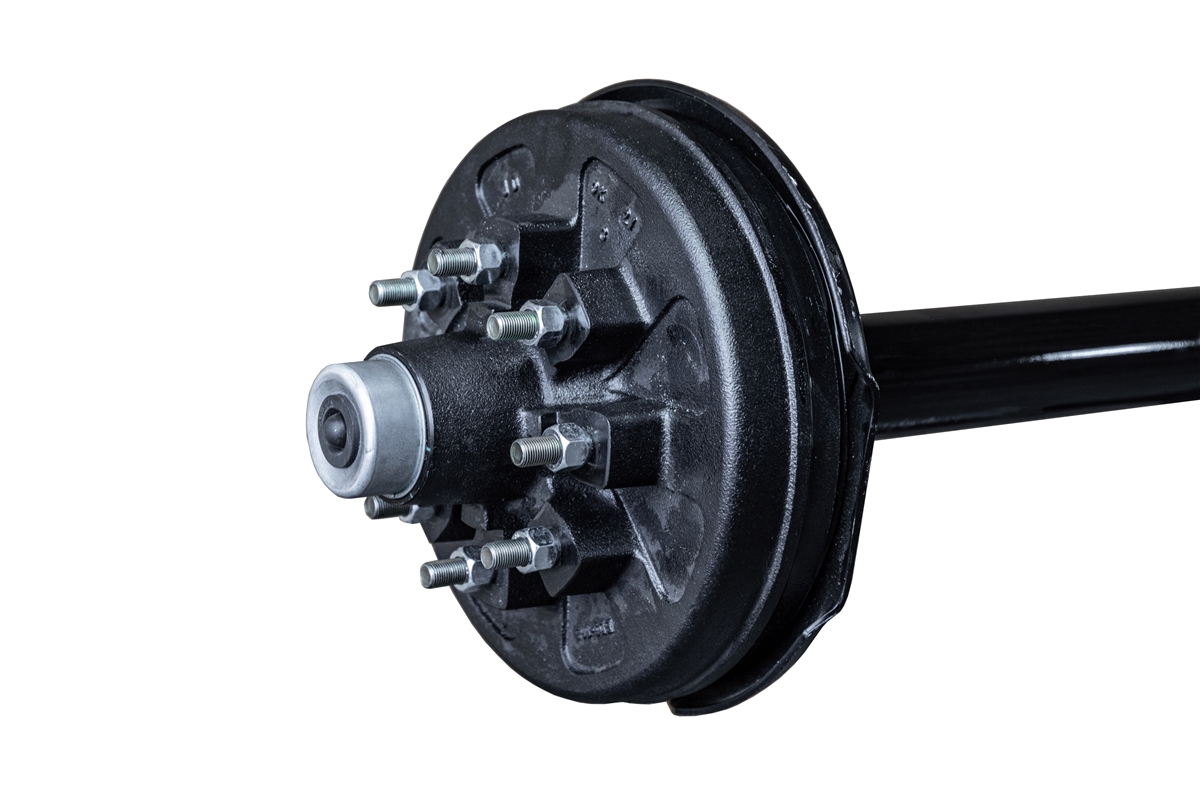

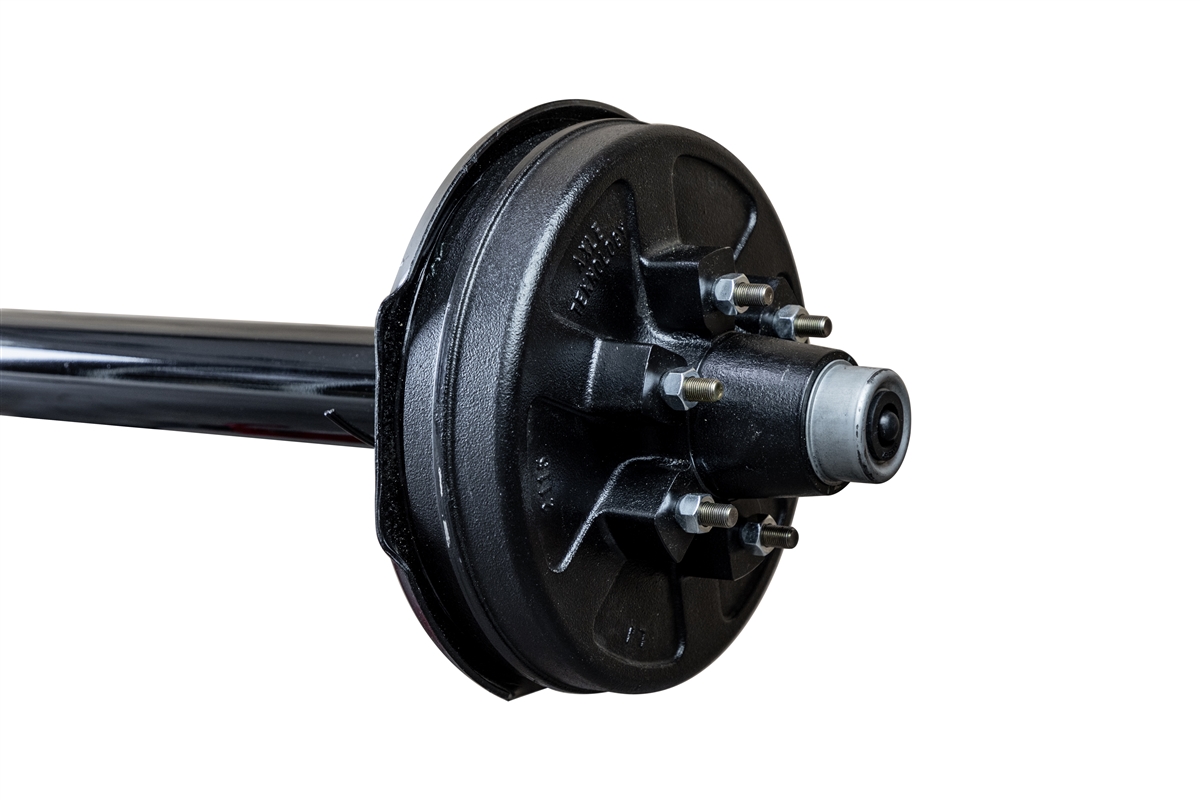

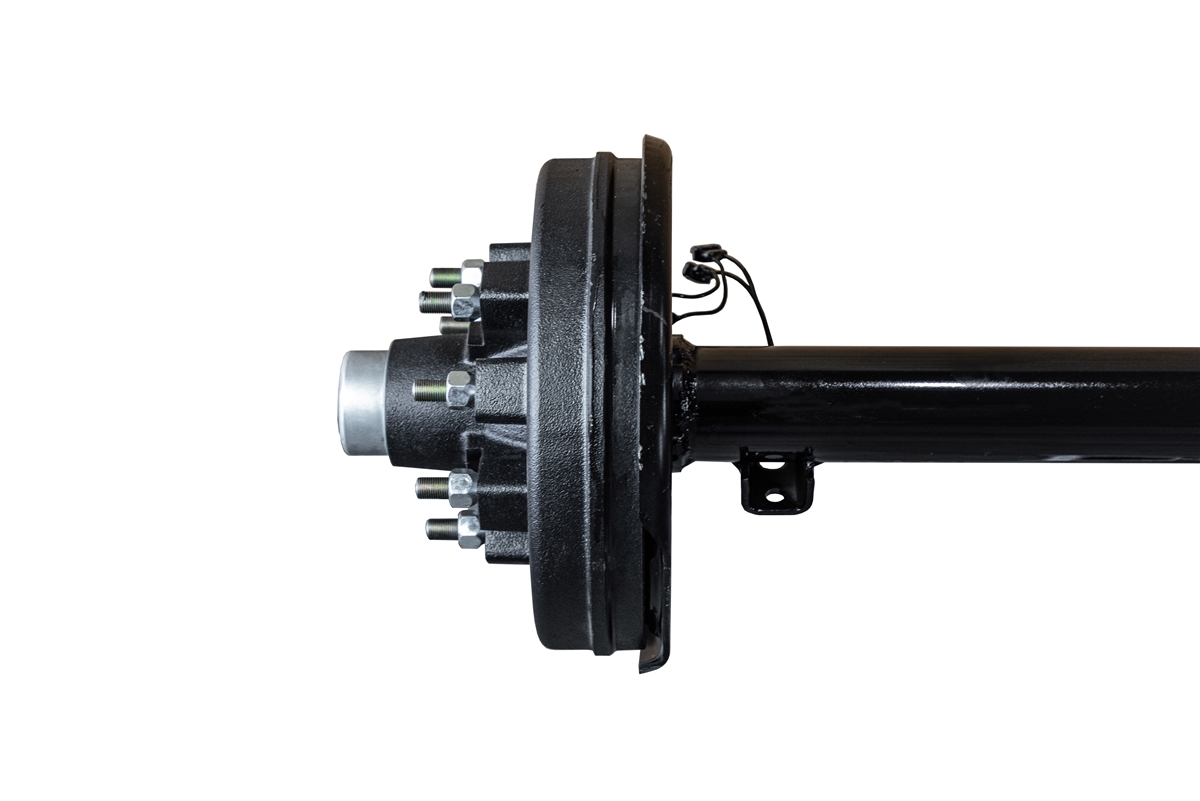

Hubs: Pre-greased Idler or Drum with 1/2" or 9/16" studs

Possible Brakes Options :

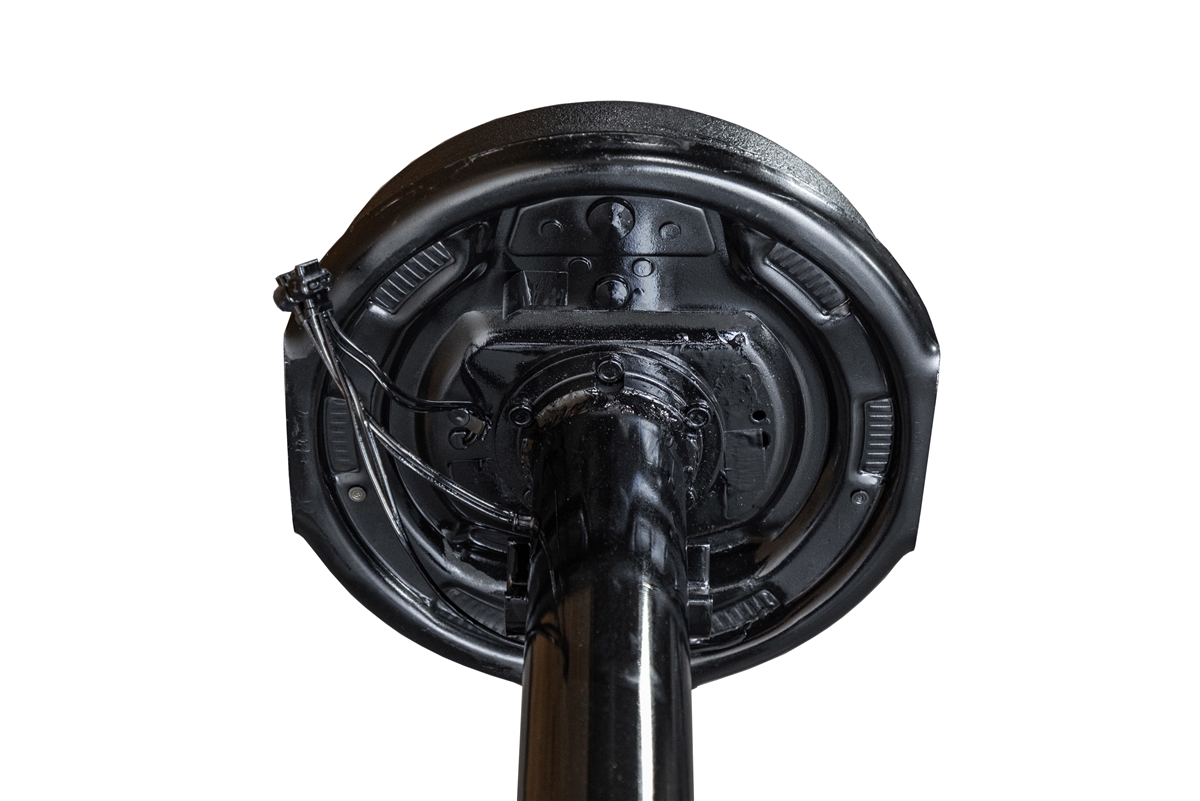

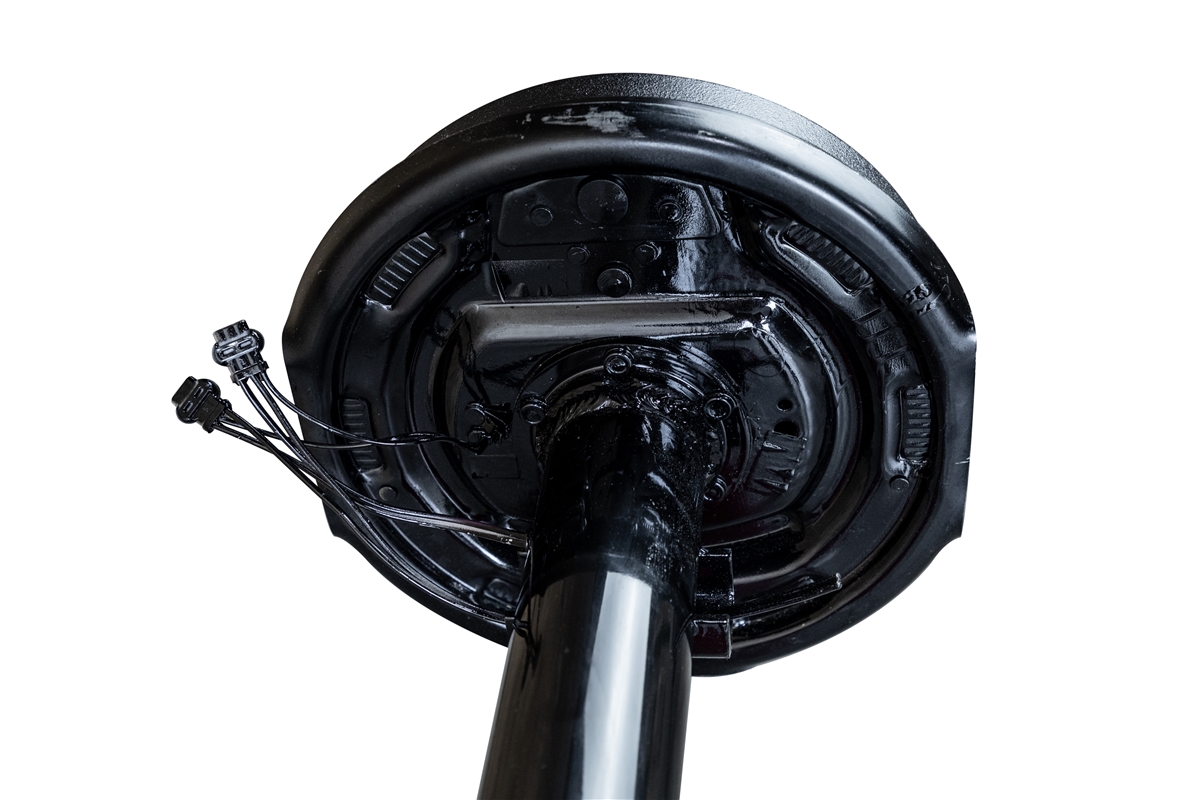

(1) LH and RH 12" x 2" Self-Adjusting Electric Brakes
(1) LH and RH 12" x 2" Free-Backing Hydraulic Drum Brakes
(1) LH and RH 12" or 13" Dacroment Disc Brakes Rotors with Calipers

Bearings:
Inner: 25580
Outer: 6K: 15123 7K: 14125A
Races:
Inner: 25520
Outer: 6K: 15245 7K: 14276

Grease seal: Part # 10-36 2.25" ID x 3.371" OD

Main Specs:
Construction: Steel
Finish : Sherwin Williams High Gloss Paint
Axle Weight rating: 6,000 or 7,000 lb. capacity
Spindle Type : Straight
Hub Face to Hub face : Your specification in 1/4" increments (See measurement guide)
Spring Center to Spring Center : Your Specification in 1/4" increments (See measurement guide)
Warranty : Limited 5 Year Warranty
Made in the USA




Axle build process link https://fayettemfg.com/our-process/

Customer Focused Products!

Expedited Fulfillment Times

If you rely heavily on your broken-down trailer, we offer an Expedited build time on our axles! If required, shipping will take longer, but this guarantees that your axle will be complete within a week and in as little as a day or two in some cases
* Expedited build times do not apply to weekends.

Pre-Greased Hubs / Pre-Set Brakes

Your axle will be shipped to you ready for installation. No extra prep work is required, simply bolt it to your trailer and torque the bolts.

5 Year Limited Warranty

Our Axles will be free from defects in material and workmanship for a period of 5 years. If you would encounter an issue, a simple call to our facility will be all that is required.

Aftermarket Interchangeability for
All Components

All of our bearings, brakes, and hub components are interchangeable with all other large axle brands! Even though we are happy to provide any replacements part you may need, any Dexter, Rockwell, Al-ko, or Lippert brand components are 100% interchangeable with ours.
