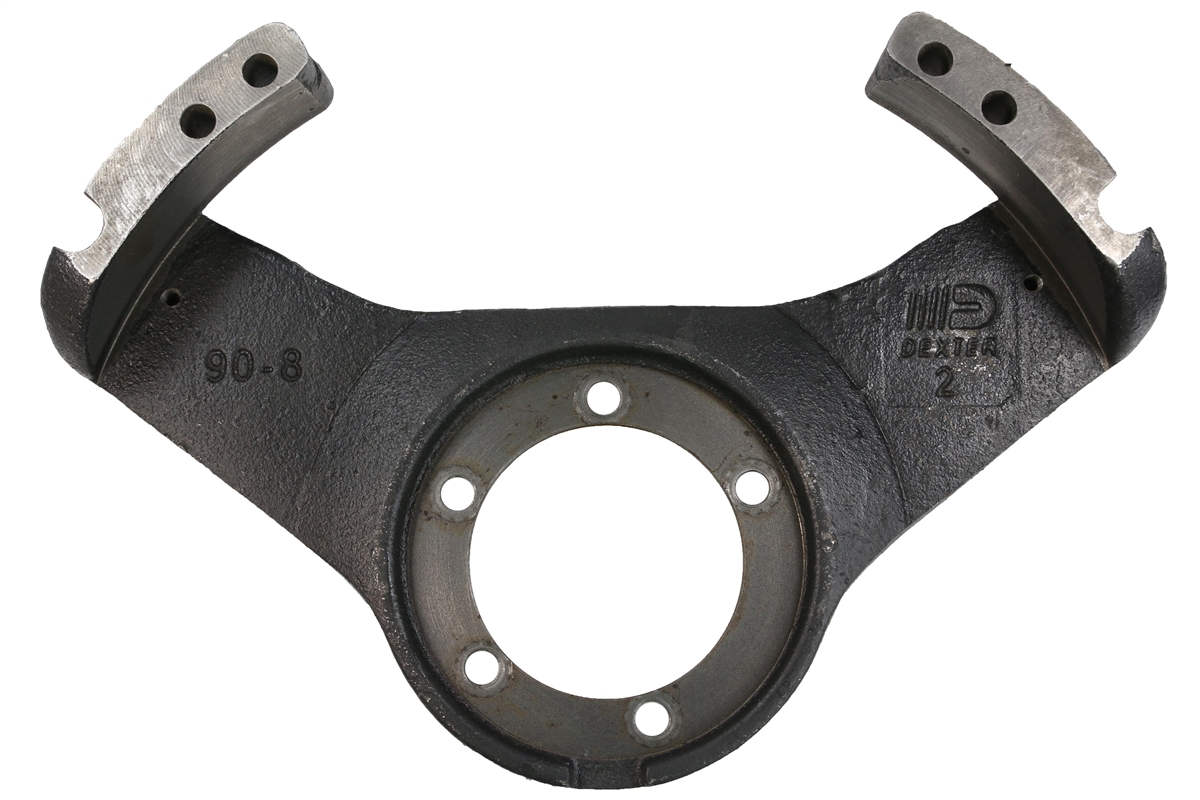

Dexter 7,000 lb Axle Replacement RH Caliper Bracket
Designed to be mounted on the RH or Passenger's side of the axle
Bolts on to the axle flange with 5 mounting bolts
Works with the Dexter K71-693-00 caliper
Made from cast iron construction w/Black Paint finish
Manufacturer: Dexter Axle
Axle Capacity: 7,000 lbs
Dexter's Part Number: 090-008-02
Dexter Parts Warranty: 5 Year Warranty
Made in the USA
Installation Instructions:
Bolt the anchor yoke in place with the caliper mounting tabs facing outward and to the ear of the axle.
Apply Loctite thread locker (blue 242 or equivalent) removable thread locker and torque the 3/8" mounting hardware with the lock washers and nuts on the inward side of the brake flange to 25-50 ft lbs.
|
|
|
Brake Yoke Dexter
