Dexter 5,500-7,000 lb axle replacement caliper kit.
This caliper fits both the left or right hand side of your trailer
Caliper is designed with 4 pistons that push from both directions
Made from cast iron construction with a black paint finish
Designed to work with 15,16", 16.5", and 17.5" wheels.
Wrenches and paper instructions included for ease of installation
Kit Includes:
(4) Caliper Mounting Nut # 006-045-00
(4) Caliper Mounting Bolt # 007-254-00
(1) Nut #006-289-00
(1) Hex Bolt #007-469-00
(1) Cotter Ring #019-019-00
(1) Tube Clamp # 027-060-00
(1) Anti-Rattle Spring # 046-145-00
(1) Spring Tension Clip # 046-218-00
(1) Bleeder Screw # 054-092-00
(1) Adapter Fitting # 054-094-00
(1) Hydraulic Cross Over Line
(1) Hex Bolt # 087-002-00
(2) Cast Assembled Caliper Half Piece # 089-005-06
(2) Wrench 8,10,13 and 16 MM
(1) Allen wrench
(1) Paper Installation Instructions
Main Specs:
Manufacturer: Axle Teknology
Position: Left or Right Hand
Part Number: A71-630-00 or AK71-630-00
Dexter's Crossover Part Number: K71-693-00
Warranty: 1 Year Warranty

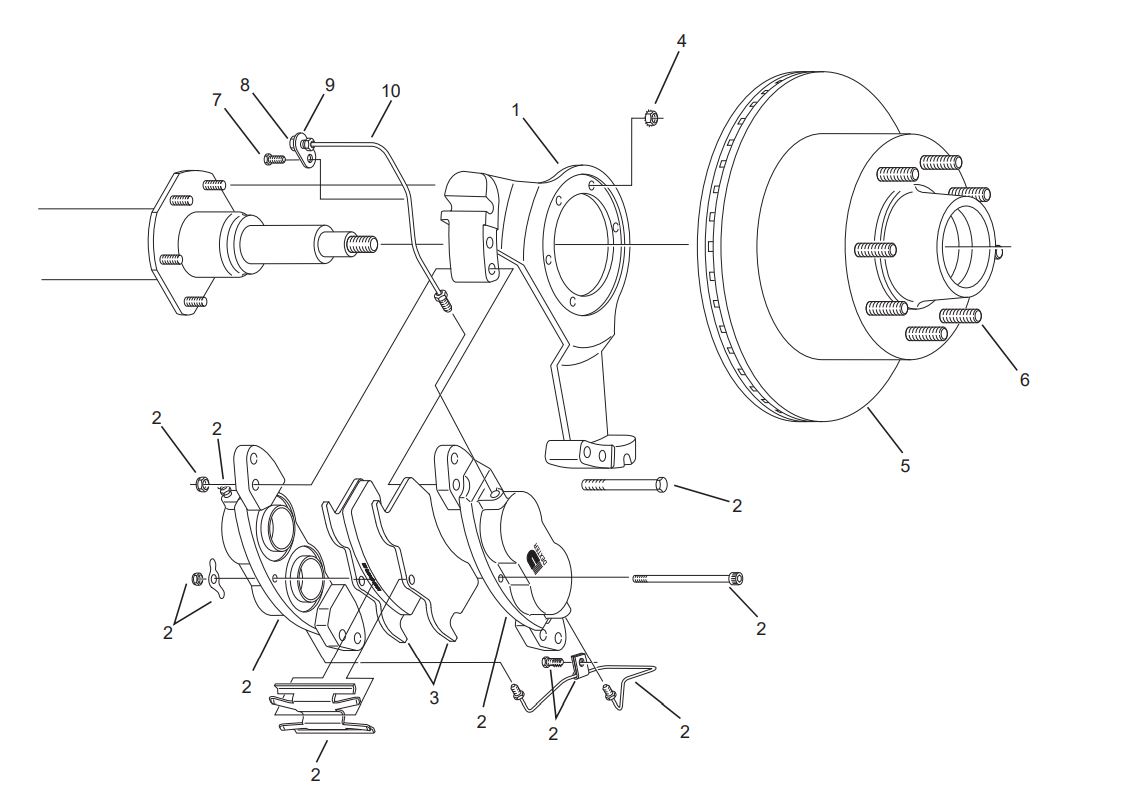

7K Diagram : All Items Marked #2

Axle Technology Quality :
QAI Testing and CSA certification :
These brake assemblies meet and exceed the requirements for Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load in a set distance and to be built to industry standards. In addition these brake have also been tested by QAI for braking performance in a complete automotive setup, and under real-world conditions. This provides the most realistic scenarios that the everyday driver will see and to ensure the brake is built with safety and quality in mind.
Automotive-Grade Friction Material :
Axle Technology brought the power of automotive-grade friction material to the trailer brake market.This provides improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe.The lining is custom-molded on the shoe which provides a perfect fit as well as eliminates or reduces the change of cracking and crumbling. In addition tapered edges protect against mechanical lockup ,which can occur when brake shoes are excessively worn or broken.
The friction material is SAE-N certified . SAE-N means the material is environmentally safe and complies with California and Washington regulations. As a result this material not only provides a high-performance braking and stand the test of time.They also are environmentally friendly and safe to use in both the United States and Canada
|
|
|
