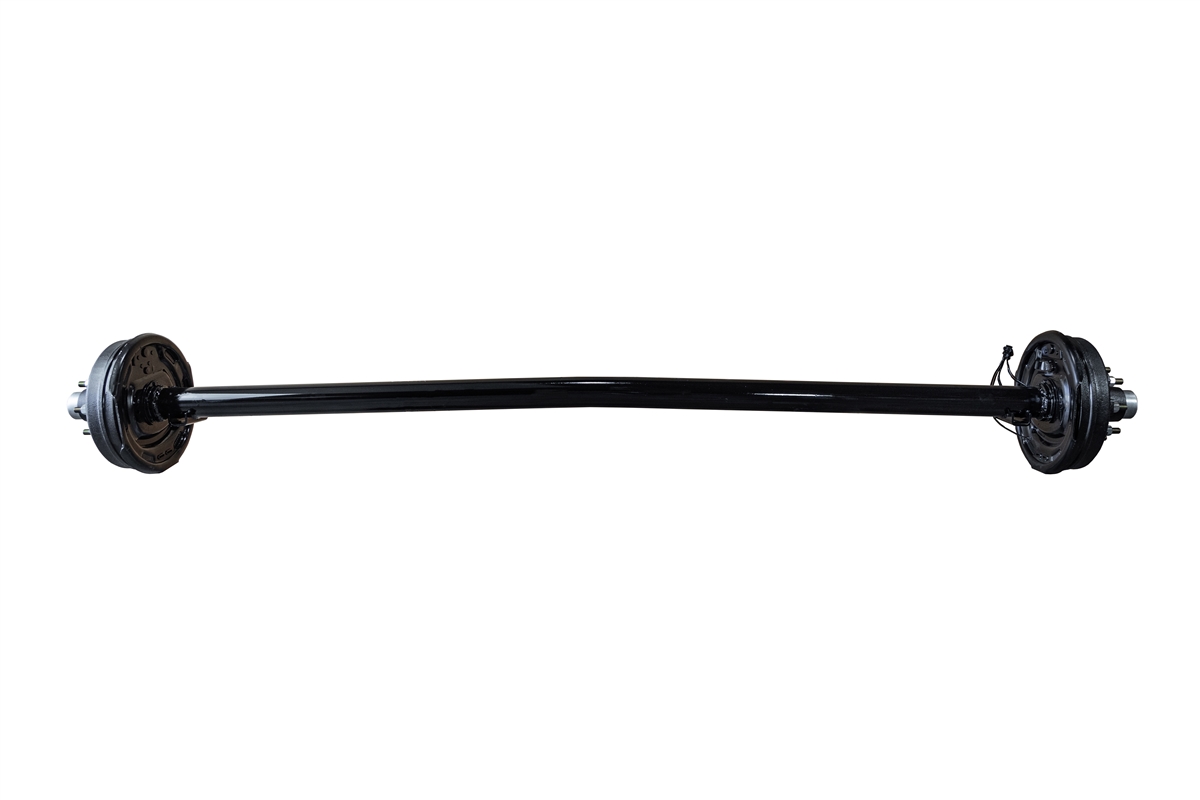

7,000 lb. Trailer Axle -Complete w/ Electric Brakes 82" HF 66" SC

Alternative Views:

Our Price: $810.00

Stock Status:(In Stock)

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110063

Please Contact for shipping options Email : [email protected] or Phone : 717-473-4000

Description

Complete 7,000 lb. electric brake axle assembly.
Straight axle with springs seats underneath the axle
Weight rating: 7,000 lb. capacity
Fits PJ Trailers models LS and FS built after March 15, 2016

Cambered Axle Tube:
3" outside diameter - medium wall tubing

Spindle Size:
#42 with grease zerk

Hub:
8-219-13 Drum / Hub with 9/16" wheel studs

Inside components:
Brakes:
23-180 LH 12" x 2" electric brake
23-181 RH 12" x 2" electric brake

Bearings:
Inner: 25580
Outer: 14125A

Races:
Inner: 25520
Outer: 14276

Grease seal: Part # 10-36 2.250" ID x 3.376" OD

Main Specs:
Weight rating: 7,000 lb. capacity
Axle Hub Face to Hub face: 82"
Spring Center to Spring Center: 66"
Bolt Pattern: 8 on 6.5"
Wheel Stud Size: 9/16"
Brake Type: Electric Brakes 12" by 2"
Lubrication: Zerk lube spindles w/grease zerk
Part number: 110063
