Dexter 12,000 lb. Axle - Hydraulic Disc Brakes 74" HF 46" SC for Hutch or HDSS

Alternative Views:

Our Price: $3,799.99

Stock Status:(In Stock)

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110193-H

Please Contact for shipping options Email : [email protected] or Phone : 717-473-4000

Description

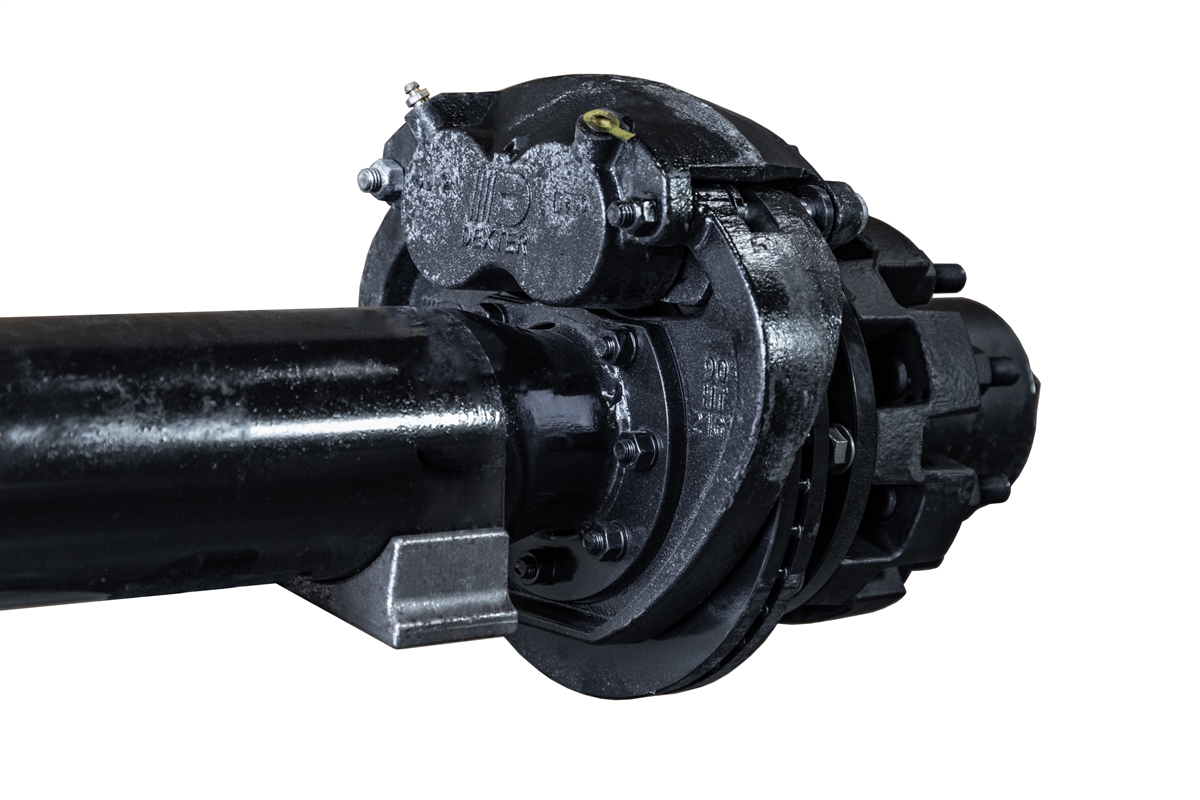

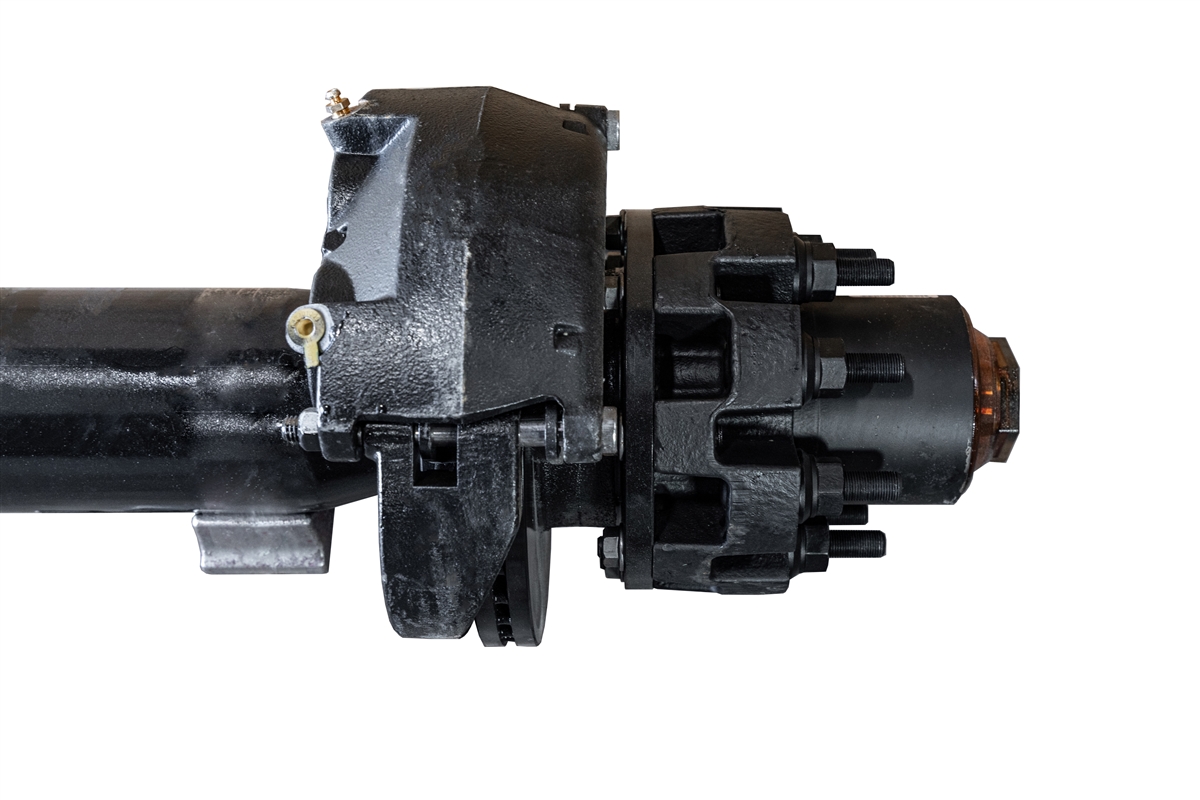

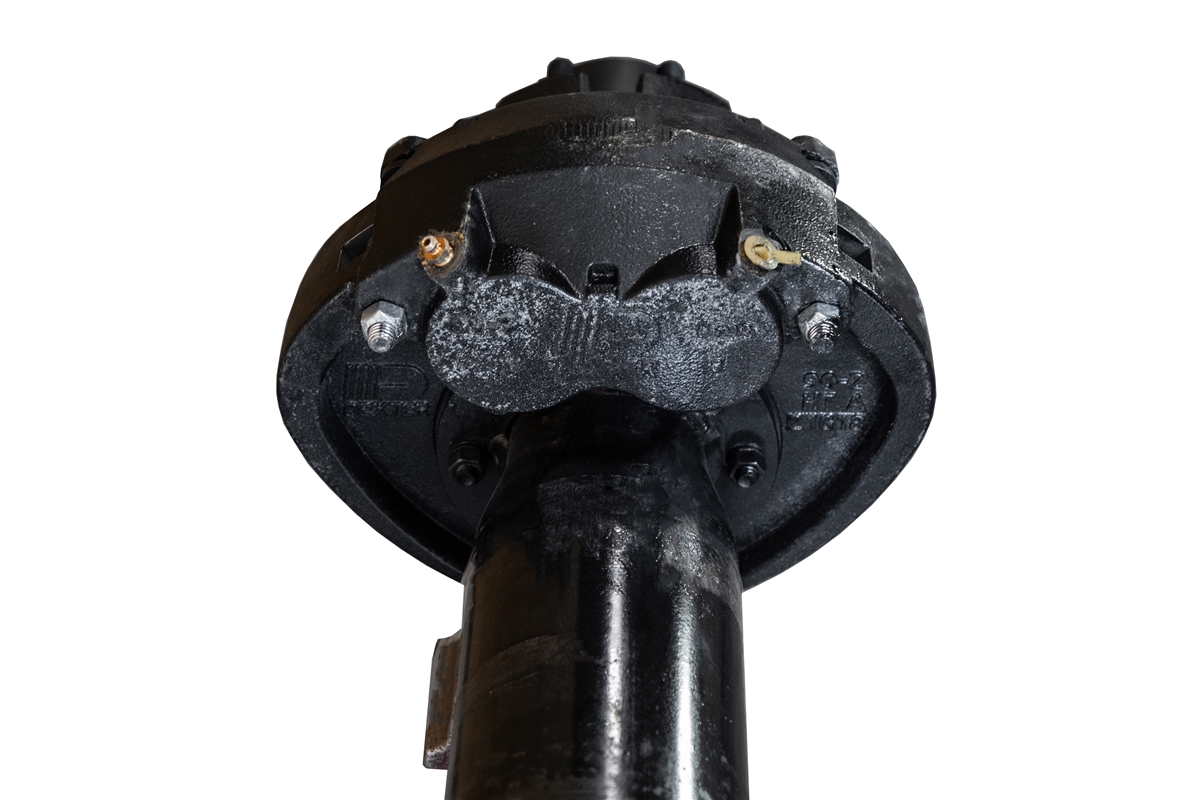

Complete Dexter 12,000 lb Heavy Duty Hydraulic Disc braking trailer axle assembly for Hutch or HDSS suspension
Includes the calipers, rotors, hubs, bearings, flanged lug nuts
*DOES NOT INCLUDE U BOLTS OR SPRINGS*
This is a straight axle with springs seats underneath the axle.
Includes 3" wide spring seats for Hutch , or Dexter's HDSS suspension
Fits PJ Tandem Dual Trailers (standard after April 2022)

Axle Tube:
5" outside diameter 0.440" wall tubing

Spindle Size:
Heavy duty spindle

Hub / Rotor:
# 8-214-10 (2 piece) high profile hub with 5/8" studs.
# 70-006-01 Brake Rotor
#89-002-2 10k / 12k Brake Caliper

Inside components:
Bearings:
Inner: 3984
Outer: 28622

Races:
Inner: 3920
Outer: 28682

Oil seal: Part # 10-56 3.125" ID x 4.500" OD

Main Specs:
Weight rating: 12,000 lb. capacity
Hub Face to Hub face: 74"
Spring Center to Spring Center: 46"
Bolt Pattern: 8 lug on 6.5"
Wheel Stud Size: 5/8"
Drum Pilot Size: 4.75"
Brake Type: Hydraulic Disc
Lubrication: Oil Bath
Axle Seat type: 3" wide for Hutch or HDSS suspension
Axle Manufacturer: Dexter Axle
Part number: 110193 or (110360 w/ springs)
Warranty: 1 to 5 years depending on the issue
Axle Warranty -PDF
