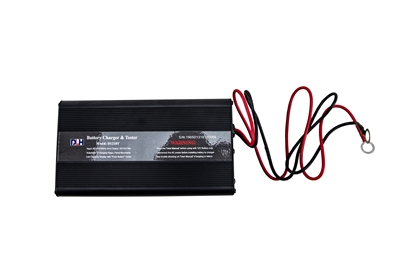

DLH Heavy Duty 12 volt 18 amp onboard automatic battery charger with built in battery status indicator.
This charger is commonly used on trailers that feature an electrically powered hydraulic function.
Battery charger conveniently mounts inside trailer toolbox and the outlet housing mounts to the outside of the box.
The included mounting screws hold the lid in place on the outside, and securely mount the charger to the inside of the box.
Charger has a automatic 3 step charging process
1.Constant-current Charge : When the battery voltage is lower than set point it will charge the battery at the max current which is called quick charging
2.Constant-Voltage Charge : When the battery is almost fully charged the charger will limit the current automatically
3.Float Charge : When the battery reaches 13.5V it will automatically Switch to a float charging condition with current of 0.1A~0.3A
Kit Includes:
(1) Battery charger unit with durable Aluminum housing
(1) Electrical outlet cover w/ spring loaded lid
(4) Screws to secure cover housing & mount battery charger
Specs:
Input : AC 120V
AC Plug Type : 3-Prong
Output : DC 12V
Charging Amps : 18
Efficiency : 85%
Shell Material : Aluminum
Size: 7" by 4" by 2-3/8" thick
Battery types:12V Lead Acid Batteries only
Internal fan keeps the charger from overheating
Short circuit & reverse polarity protection
Overcharge & overload protection
Battery fault detection
3/8" ring terminals with shrink tube
24" 16 AWG wire leads with terminal ring connections
Brand: DLH Fluid Power
Part number: 501-0008 or D1218T
Warranty: Limited design/workmanship of 18 months
Indicator Lights:
Power on light : On The charger has power
Charging light-Red : On Battery is charging but not full
Charged light-Green : On Battery is fully charged and float charging only is ready for use
If charger is beeping the battery terminals polarity is reversed or the battery over DC12V is connected
To test the battery, remove AC power and press the "push" button and see your results. No lights mean the battery is dead and needs replaced.one light is poor ,two is fair, three is good, and if your truck is hooked to the battery and running at 2,000 RPM all 4 means your getting charge from the tow vehicle
|
|
|
