Built to Order Fayette MFG. Trailer 3,500 lb. Axle Beam Only -4" Drop
Built to Order Fayette MFG. Trailer 3,500 lb. Axle Beam Only -4" Drop Spindle

Alternative Views:
Our Price: $280.00

Price with Selected Options: $280.00


Product Code: FD35XXXX-Z


Custom Hubface (Ex. 85.25")*:

Custom Spring Center (Ex. 75.50")*:

Spring Seat Orientation*: 		Bottom of axle
Top of axle

Spring Seats Loose -No Rating: 		Axle will NOT be rated

Add Heavy Duty Double Beam Option: 		1/2" Thick 3" OD [Add $165.00]

Camber: 		Camber
No Camber

Tube Wiring Option*: 		Electrical Wire Run Through Axle Tube
No Electrical Wire in Tube

Add on:

Axle Build Processing Time*: 		Rush - Expedited build time M-F * Note: Shipping time not included [Add $150.00]
Standard 1-3 weeks

No Return Acknowledgement*: 		All Trailer Axles are custom built . Please double check all measurements and options before summiting . By checking this box you are acknowledging that you understand that custom axles can not be returned and that all measurements and options are correct.

Qty:
Description

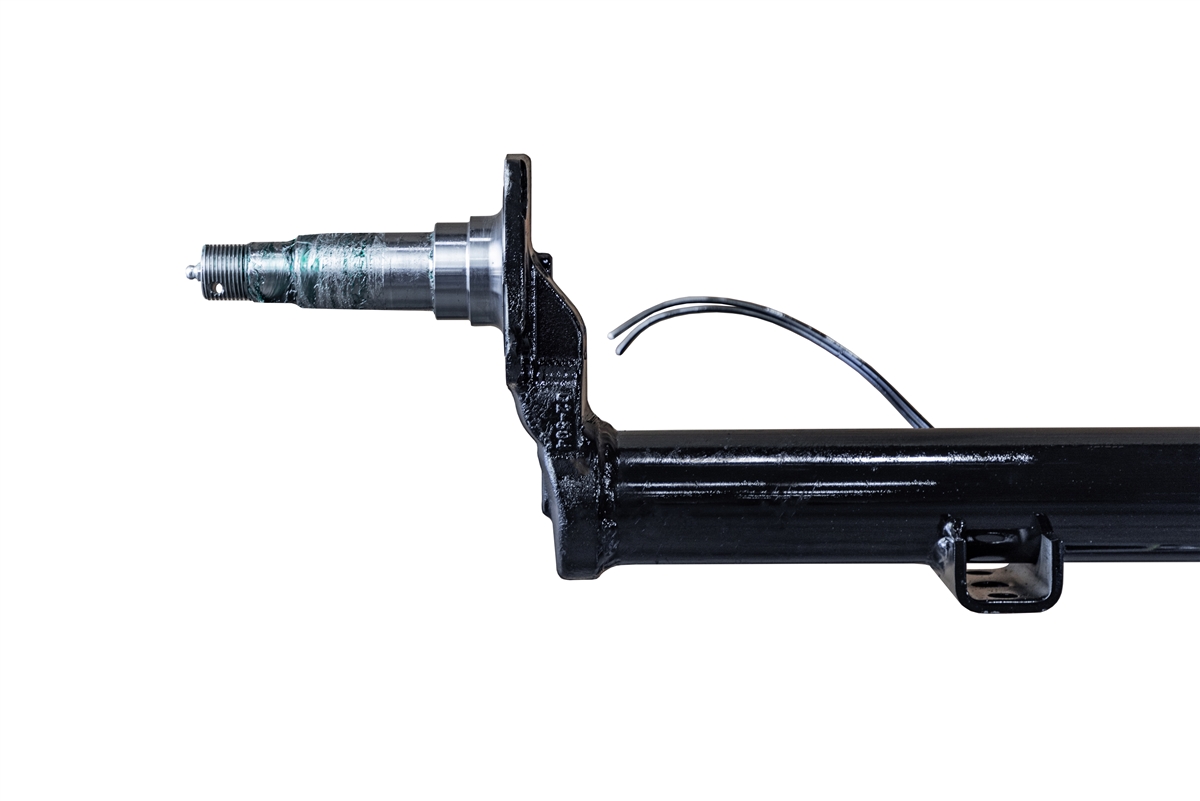

Complete 4" Drop 3,500 lb. replacement axle beam built to your exact specifications
Beam includes : Axle tube, brake flanges,Axle Seats and axle spindles.
Spindles Included Integrated Brake Flange: 4 Bolt for 10" x 2-1/4" brakes

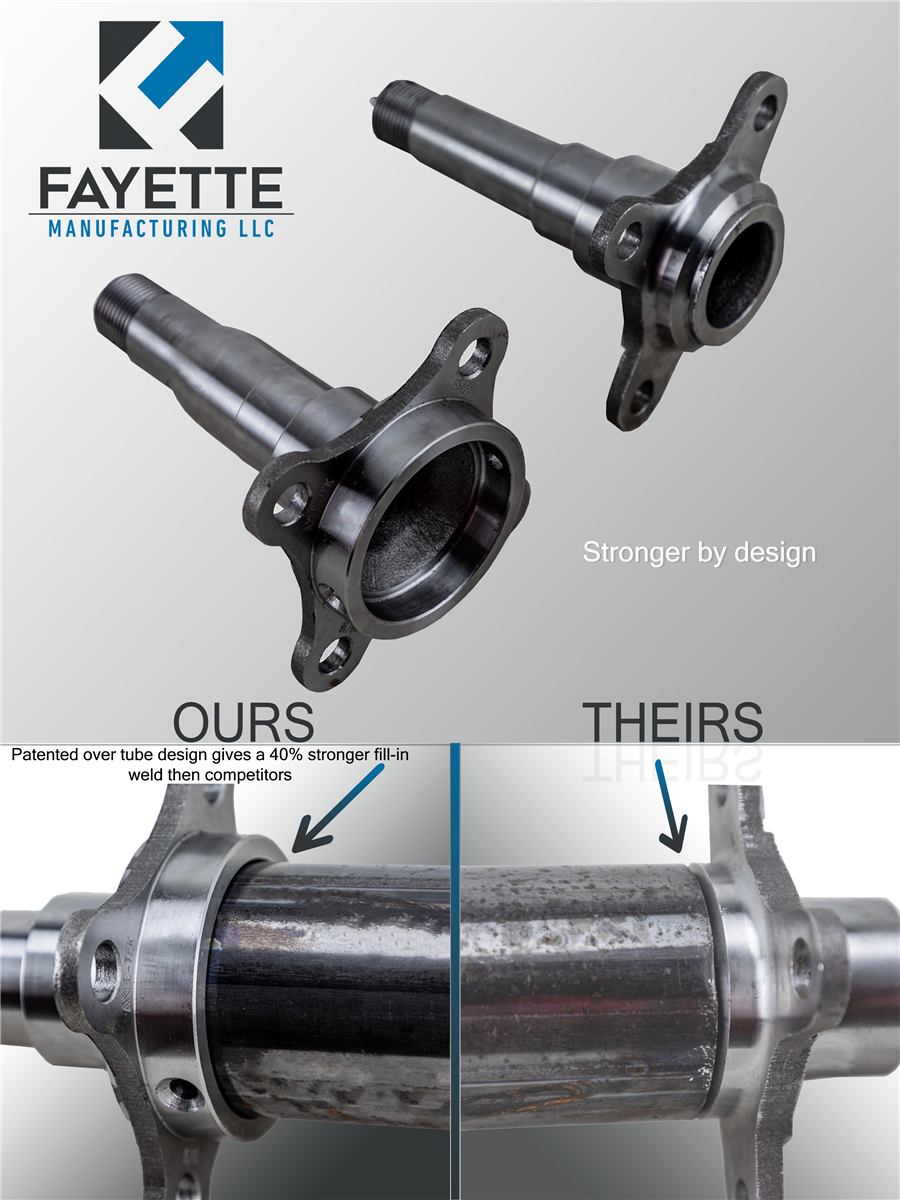

Spindles are designed with a patented over tube design which allows for a 40% stronger weld
Axle Beam is cambered to precision
Lubrication: Easy lube spindles with grease zerk
Made in the USA
Note: Pictures are examples only

Axle Tube: 2-3/8" outside diameter -.220" medium wall tubing

Spindle Size: #84 with grease zerk

Inside components:(NOT Included Spindle only )
Bearings:
Inner: L68149
Outer: L44649
Races:
Inner: L68111
Outer: L44610

Grease seal: Part # 10-19 1.719" ID x 2.565" OD (NOT Included)

Main Specs:
Construction: Steel
Finish : Sherwin Williams High Gloss Paint
Manufacturer: Fayette Manufacturing LLC. Website: https://fayettemfg.com/
Axle Weight rating: 3,500 lb. capacity
Spindle Type : 4" Drop

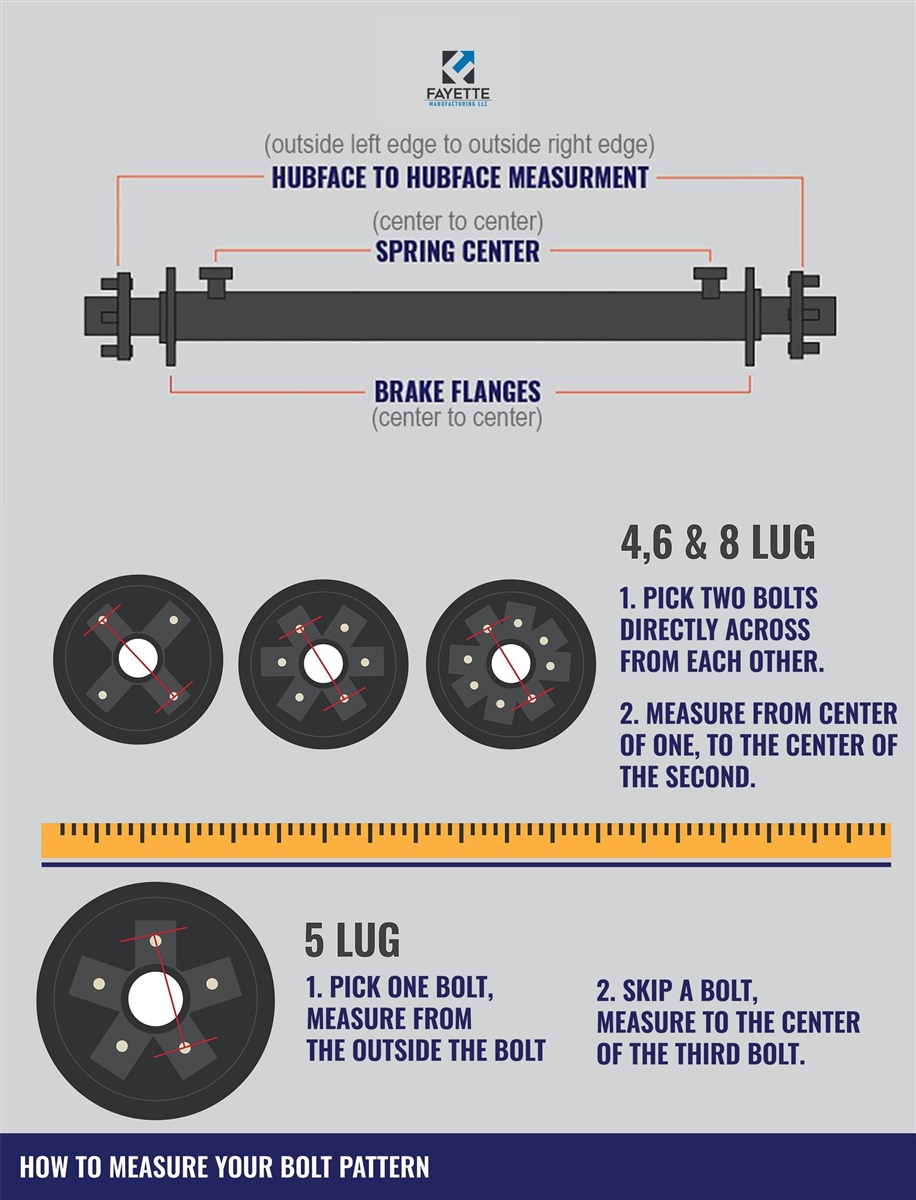

Hub Face to Hub face : Your specification in 1/4" increments (See measurement guide)
Spring Center to Spring Center : Your Specification in 1/4" increments (See measurement guide)
Warranty : Limited 5 Year Warranty
Made in the USA



Axle build process link https://fayettemfg.com/our-process/

Customer Focused Products!

Expedited Fulfillment Times

If you rely heavily on your broken-down trailer, we offer an Expedited build time on our axles! If required, shipping will take longer, but this guarantees that your axle will be complete within a week and in as little as a day or two in some cases
* Expedited build times do not apply to weekends

5 Year Limited Warranty

Our Axles will be free from defects in material and workmanship for a period of 5 years. If you would encounter an issue, a simple call to our facility will be all that is required.

Aftermarket Interchangeability for
All Components

All of our bearings, brakes, and hub components are interchangeable with all other large axle brands! Even though we are happy to provide any replacements part you may need, any Dexter, Rockwell, Al-ko, or Lippert brand components are 100% interchangeable with ours.
