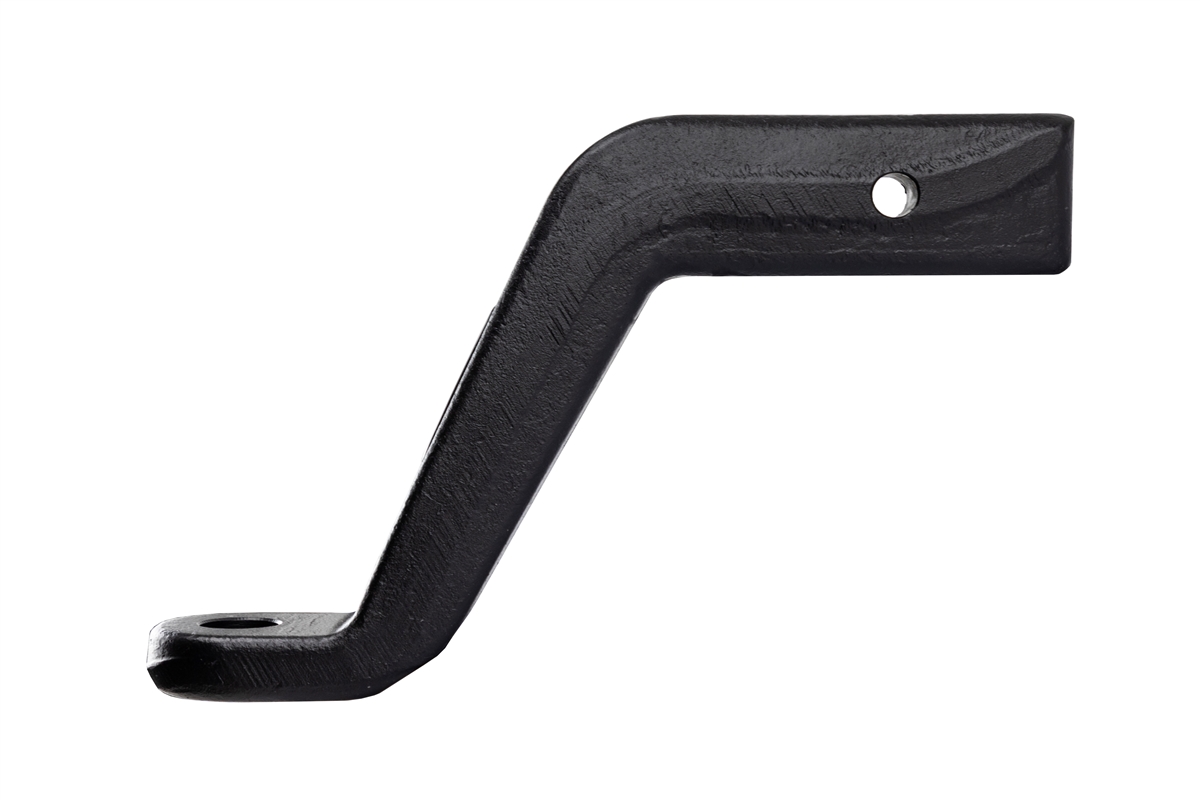

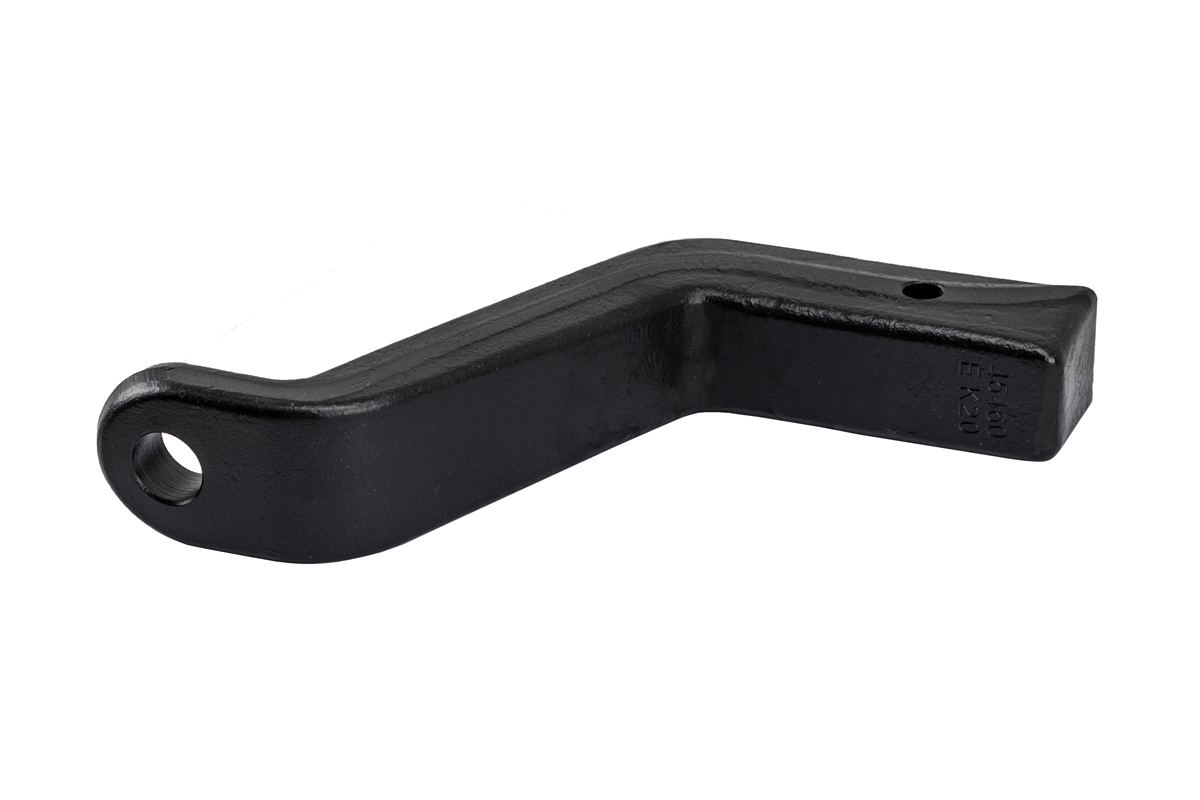

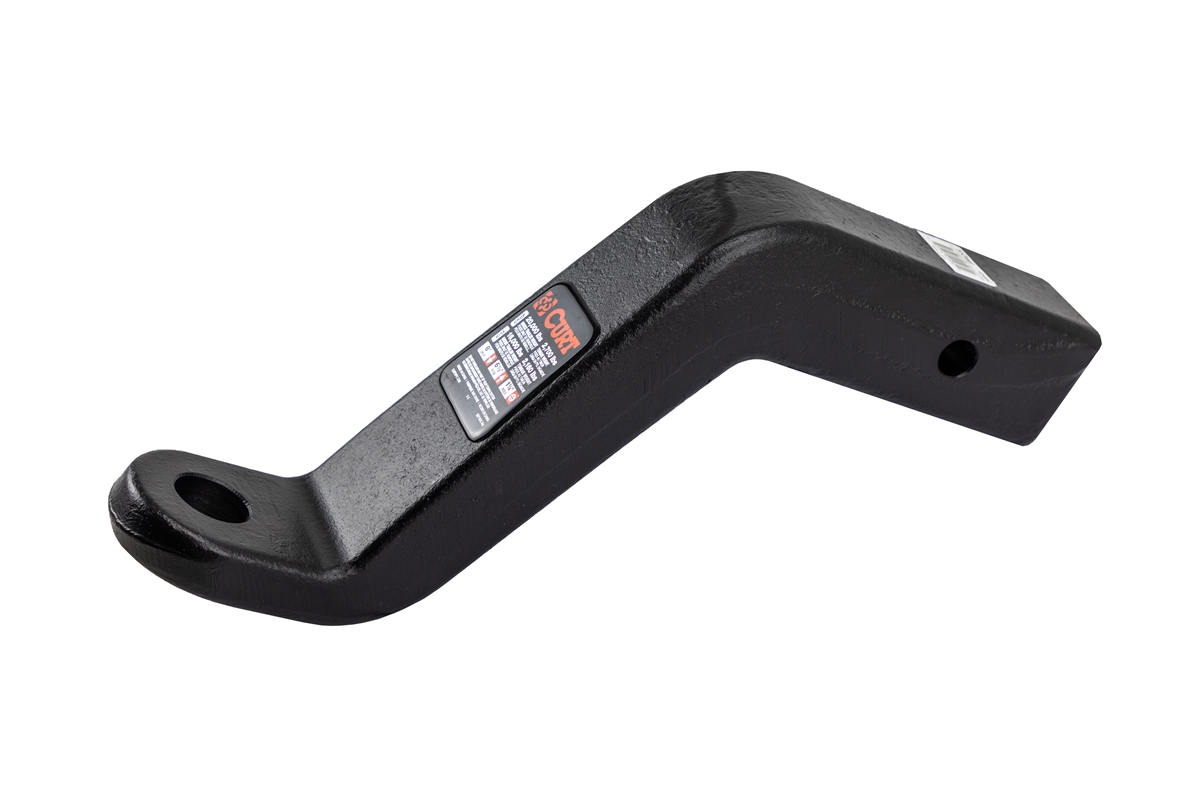

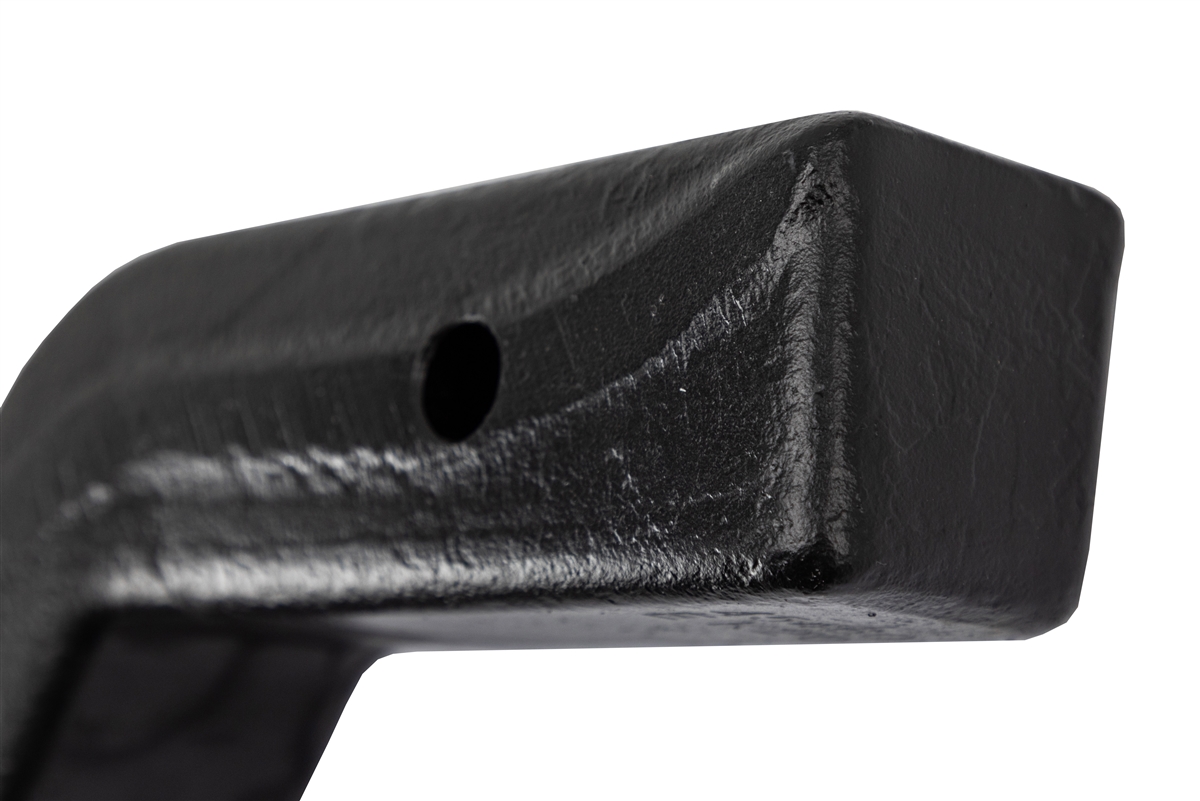

CURT Commercial Duty Forged 2-1/2" Receiver Ball Mount 8" Drop 6-1/2" Rise -20,000 lbs.
Product Details:
When it comes to towing on the job, there is no room for messing around. Either your equipment can get it done or it falls to the wayside. Give yourself the advantage with a CURT commercial-duty forged ball mount. Defying all preconceived ideas about heavy-duty towing, these solid steel monsters are packed with the strength necessary to tow virtually anything your commercial receiver trailer hitch can handle. The secret to their strength is their one-piece, zero-weld construction.
Each CURT forged ball mount is designed to surpass other 2-1/2" options to accommodate the added stress of heavy-duty towing. Forged steel construction makes these ball mounts incredibly strong and able to tow up to 20,000 lbs. of gross trailer weight in the drop position (16,000 lbs. in rise position). This CURT forged ball mount can also handle trailer tongue weight up to 2,700 lbs. drop and 2,160 lbs. rise, giving it the added advantage it needs for towing the largest of trailers. It comes with a black carbide powder coat finish to provide the necessary protection against rust, scratches and UV damage so that it is able to face the challenges of hard, honest work. From the construction site, to the industrial park, to the farm, a forged ball mount is the obvious choice, giving you the power you need for towing dump trailers, car haulers, toy haulers, livestock trailers, chopper boxes, gravity boxes, dual-axle utility trailers, RVs, small yachts and much more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

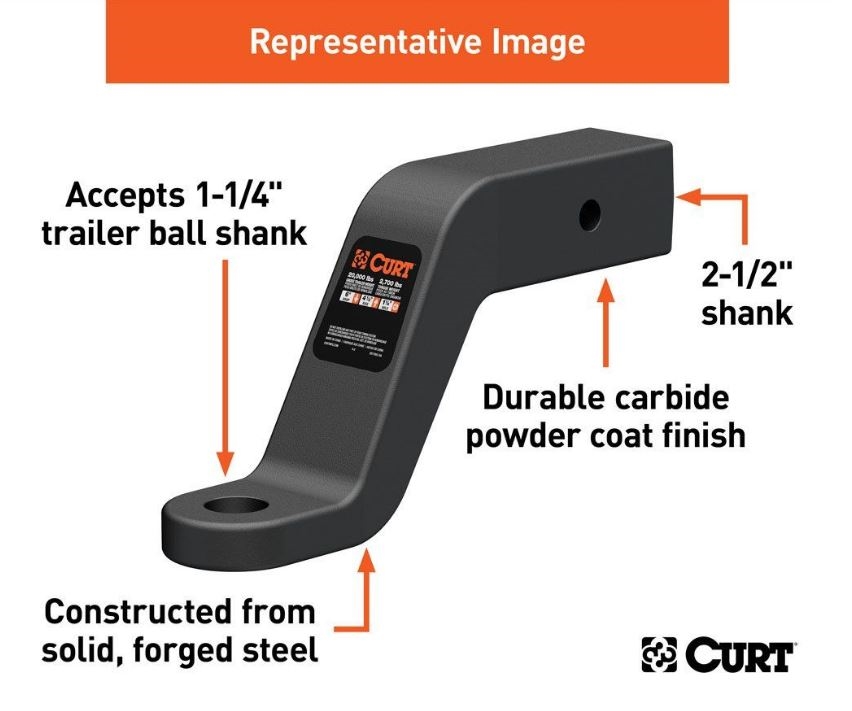

All CURT forged ball mounts feature a 2-1/2" x 2-1/2" shank, allowing them to fit into any trailer hitch with the same size receiver tube. The CURT class 5 Commercial-Duty hitch is an ideal counterpart for one of our forged ball mounts. With their especially high towing capacity, forged ball mounts are frequently used on full-size pickups, SUVs, flatbeds and other commercial trucks.
Product Specifications:
- Drop: 8"
- Rise: 6-1/2"
- Ball shank size: 1-1/4"
- Length: 10"
- Trailer weight rating: 20,000 lbs.
- Tongue weight rating: 2,700 lbs.
- Receiver size: 2-1/2"
- Ball Shank Hole Size: 1-1/4"
- Manufacturer: Curt Manufacturing
- Part number : 45460
- Limited Lifetime Warranty
