Bulldog 3,500 lb. ATV/UTV Winch with Winch plate /Fairlead

Bulldog 3,500 lb. ATV/UTV Winch with Winch plate /Fairlead

Alternative Views:


Our Price: $369.99


Product Code: 15005
Qty:

Description

lldog 3,500 lb. ATV/UTV Winch with Winch plate /Fairlead
-Popular size for ATV's and side by sides
-Includes 2 different switches
-Includes basic L-mounting channel

Specs/Part Numbers
  • Rated Single Line Pull : 3,500 lbs (
  • Hand Held Remote : 17' (5m) cord
  • Rope Size : 7/32" x 50ft ( 5.5 mm x 15.2M)
  • Mounting Bolt Pattern : 4.9" x 3"
  • Motor : 1.6 HP permanent magnet
  • Brake: Automatic load holding mechanical in drum
  • Gear Ratio: 136:1
  • Part number : 15005
  • Overall Dimension 13.6" x 4.5" x 4.5"
  • Warranty: 2 Limited Warranty

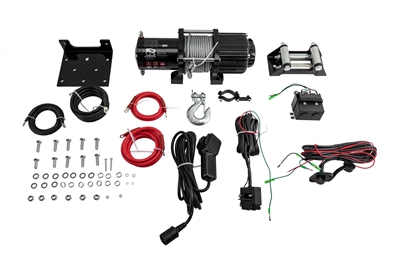

Box Includes:

  • Main Bulldog 3,500 lb. Winch
  • Roller Fairlead and mounting channel
  • Detachable control box
  • Remote Control w/ cord
  • Wire and switch
  • Wire rope w/ safety hook
  • Handsaver strap
  • 6 gauge battery leads
  • Mounting hardware
  • Installation manual
