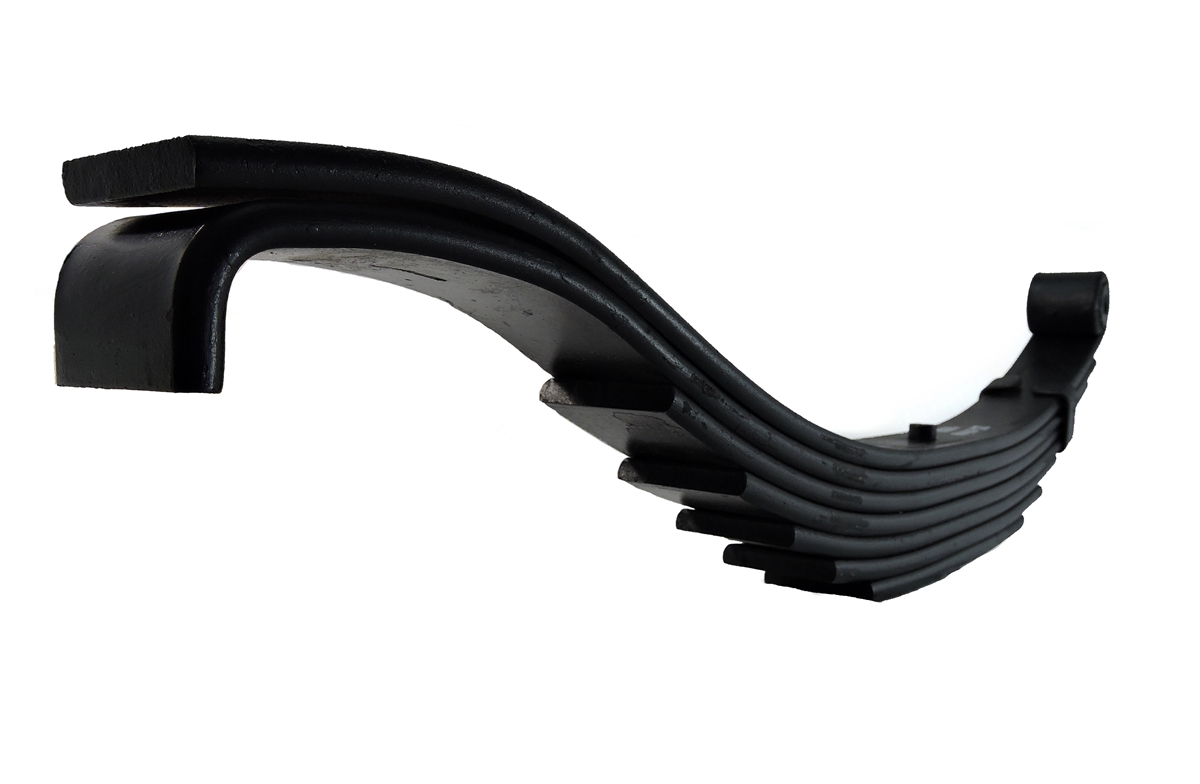

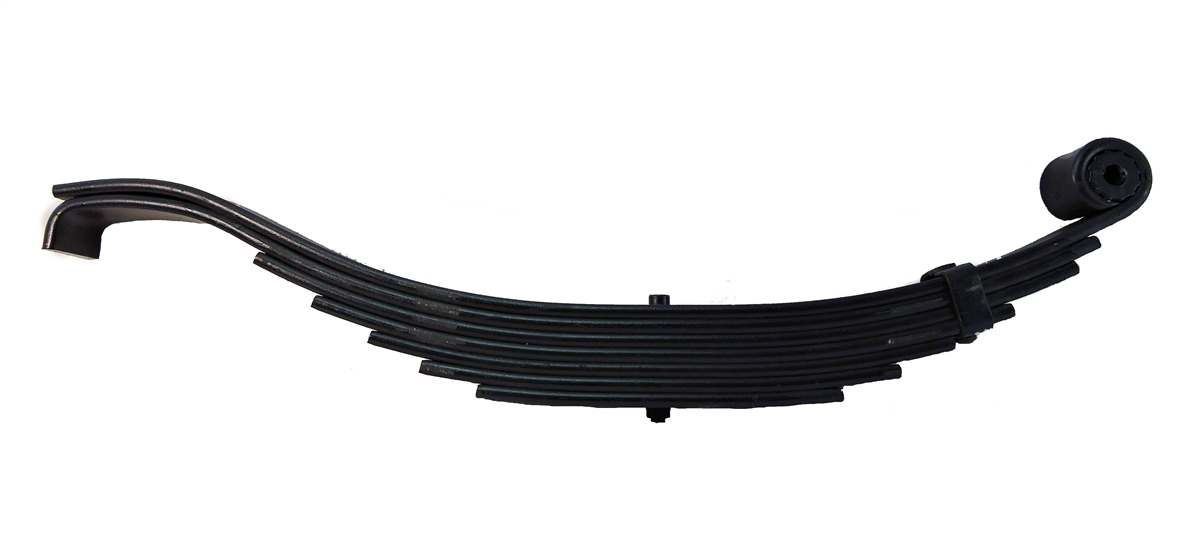

7 leaf slipper spring with a 4,000 lb capacity. (for 8,000 lb trailer axles)
Multiple leaf spring will flex to absorb road shock and provide a smooth ride
Springs reduce wear and tear on your trailer
Springs will help level and smooth out your ride
9/16" nylon bushing included with spring
Slipper spring has a hook end design
Used on PJ Trailers with 7,000 lb & 8,000 lb axles.
SPECS
Single Spring Capacity: 4,000 lbs
Axle Capacity: 8,000 lbs
Thickness of Leaves: 3/8"
Number of Leaves: 7
Spring width: 2"
Spring overall length: 26-5/8"
Spring length: 24-5/8"
Spring Eye size: 9/16"
Manufacturer: AxleTek
Construction: Steel
Finish: Black Paint
Part number: ML-051-00
Crossover part numbers 1403T3, ML-051-00, SP-285275, UNA-285
Installation Instructions:
- Eye of spring will attach to front hanger mounted to the trailer frame or to the center of the equalizer.
- Slipper end of the spring will slid into the equalizer or the rear axle hanger.
- Suggested to insert new suspension bolts and tighten to the manufacturer's specs.
|
|
|
