7,000 lb. Trailer Axle Beam only -Greaseable 73" HF 58" SC

Alternative Views:

Our Price: $325.00

Stock Status:(In Stock)

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110051

Qty:

Description

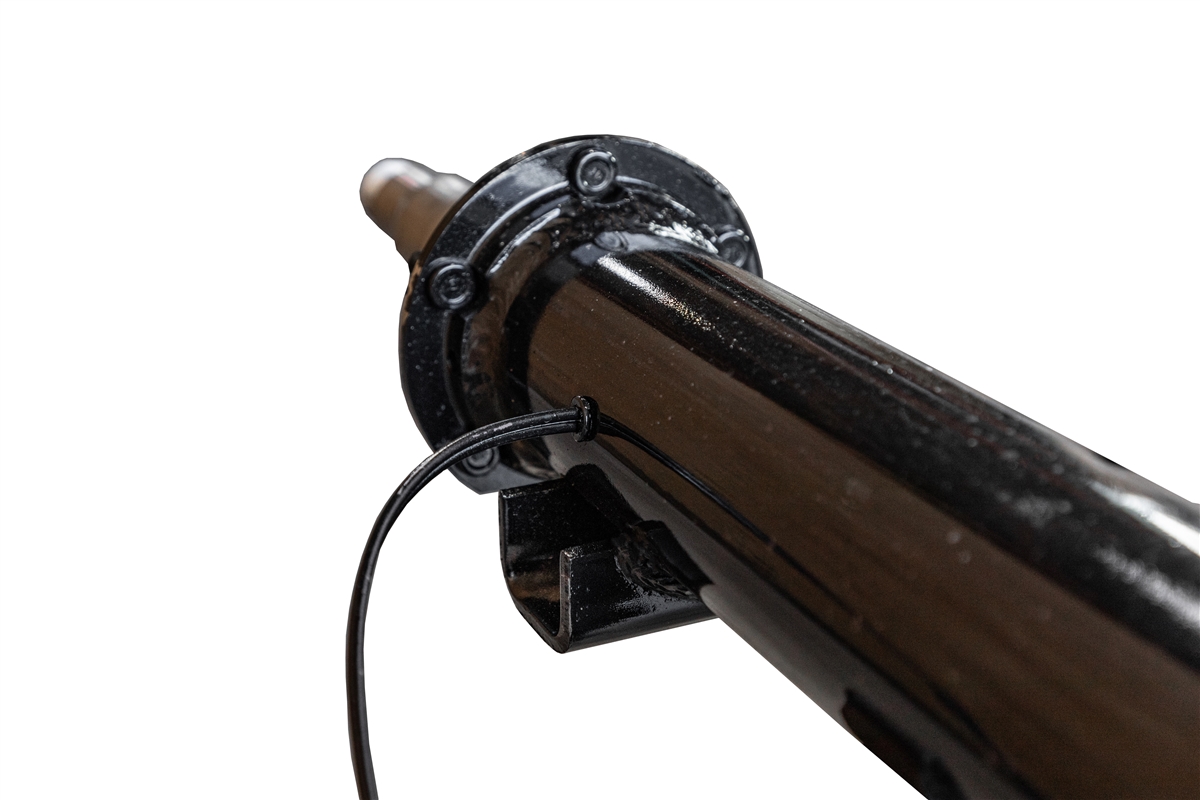

Complete 7,000 lb. replacement axle beam only built 73" HF x 58" SC
Axle tube, brake flanges, and axle spindles.
This is a straight axle beam with springs seats underneath the axle
Commonly PJ Trailers models: Older FS models and F8 Deckovers

Cambered Axle Tube:
3" outside diameter - medium wall tubing

Spindle Size:
#42 with grease zerk

Inside components: NOT INCLUDED
Bearings: NOT INCLUDED
Inner: 25580
Outer: 14125A

Races: NOT INCLUDED
Inner: 25520
Outer: 14276

Grease seal: Part # 10-36 2.250" ID x 3.376" OD

Main Specs:
Axle Weight rating: 7,000 lb. capacity
Hub Face to Hub face: 73"
Spring Center to Spring Center: 58"
Brake Flange: 5 Bolt for 12" x 2" brakes
Lubrication: Zerk lube spindles- comes with a grease zerk
Part number : 110051
