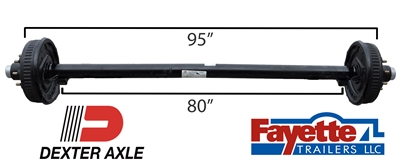

7,000 lb. Trailer Axle - Electric Brakes w 9/16" Studs -95" HF 80" SC

Alternative Views:

Our Price: $810.00

Stock Status:In Stock

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110171

Please Contact for shipping options Email : [email protected] or Phone : 717-473-4000

Description

Complete 7,000 lb. trailer axle - electric brakes & drums w/ 8 -9/16" studs
95" hubface with a 80" spring center
Straight axle with springs seats underneath the axle.
Fits PJ Trailers models: D9, D7, B6, B8, CC, C8, P8

Cambered Axle Tube
3" outside diameter - medium wall tubing

Spindle Size
#42 with grease zerk

Hub
8-219-13 Drum / Hub with 9/16" wheel studs

Inside components:
Brakes:
23-180 LH 12" x 2" electric brake
23-181 RH 12" x 2" electric brake

Bearings:
Inner: 25580
Outer: 14125A

Races:
Inner: 25520
Outer: 14276

Grease seal: Part # 10-36 2.250" ID x 3.376" OD

Main Specs:
Weight rating: 7,000 lb. capacity
Hub Face to Hub face: 95"
Spring Center to Spring Center: 80"
Bolt Pattern: 8 lug on 6.5"
Wheel Stud Size: 9/16"
Brake Type: Electric Brakes 12" by 2"
