Complete 7,000 lb replacement axle beam.

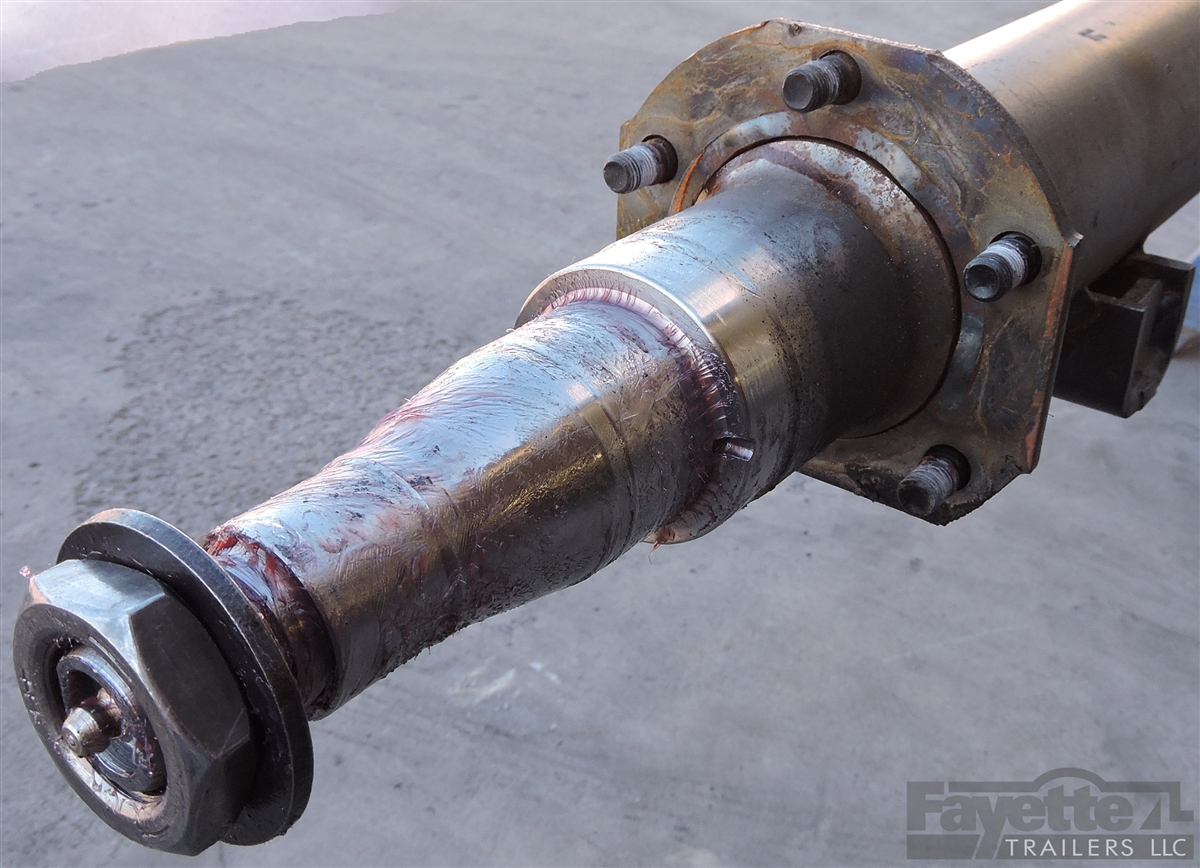

Axle tube, brake flanges, and axle spindles.
This is a straight axle beam with springs seats underneath the axle
Note: Standard Axle beam on PJ Trailers LS Gooseneck trailers
Cambered Axle Tube:
3" outside diameter - medium wall tubing
Spindle Size:
#42 with grease zerk
Inside components: NOT INCLUDED
Bearings: NOT INCLUDED
Inner: 25580
Outer: 14125A
Races: NOT INCLUDED
Inner: 25520
Outer: 14276
Grease seal: Part # 10-36 2.250" ID x 3.376" OD (NOT INCLUDED)
Main Specs:
Axle Weight rating: 7,000 lb. capacity
Hub Face to Hub face: 82"
Spring Center to Spring Center: 66"
Brake Flange: 5 Bolt for 12" x 2" brakes
Lubrication: Zerk lube spindles with grease zerk
|
|
|
