7,000 lb Trailer Axle 4" Drop Beam Only- 95" HF 78" SC

Alternative Views:

Our Price: $399.00

Stock Status:In Stock

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110054

Qty:

Description

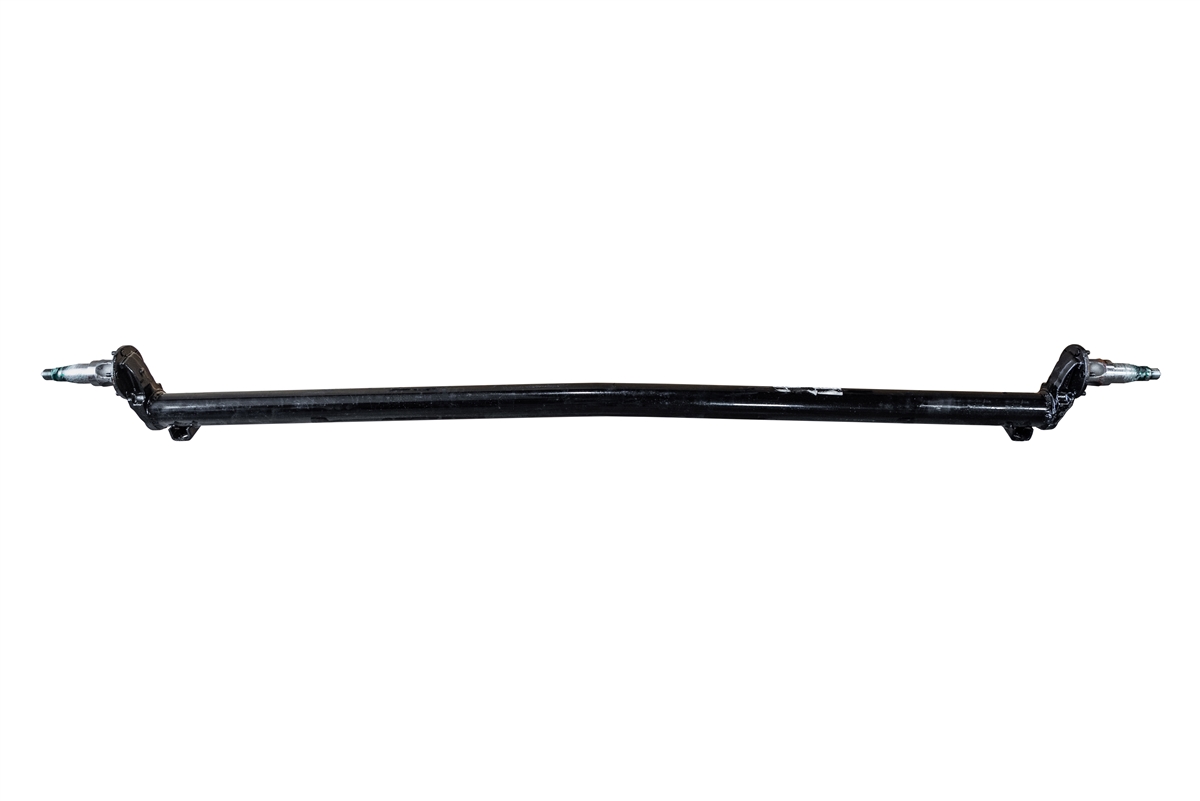

Complete 7,000 lb 4" drop replacement axle beam only
Axle tube, brake flanges, and axle spindles.
This is a 4" drop axle beam with springs seats underneath the axle
Note: This beam is used on some PJ trailer DL & DM dump trailers

Cambered Axle Tube:
3" outside diameter - medium wall tubing

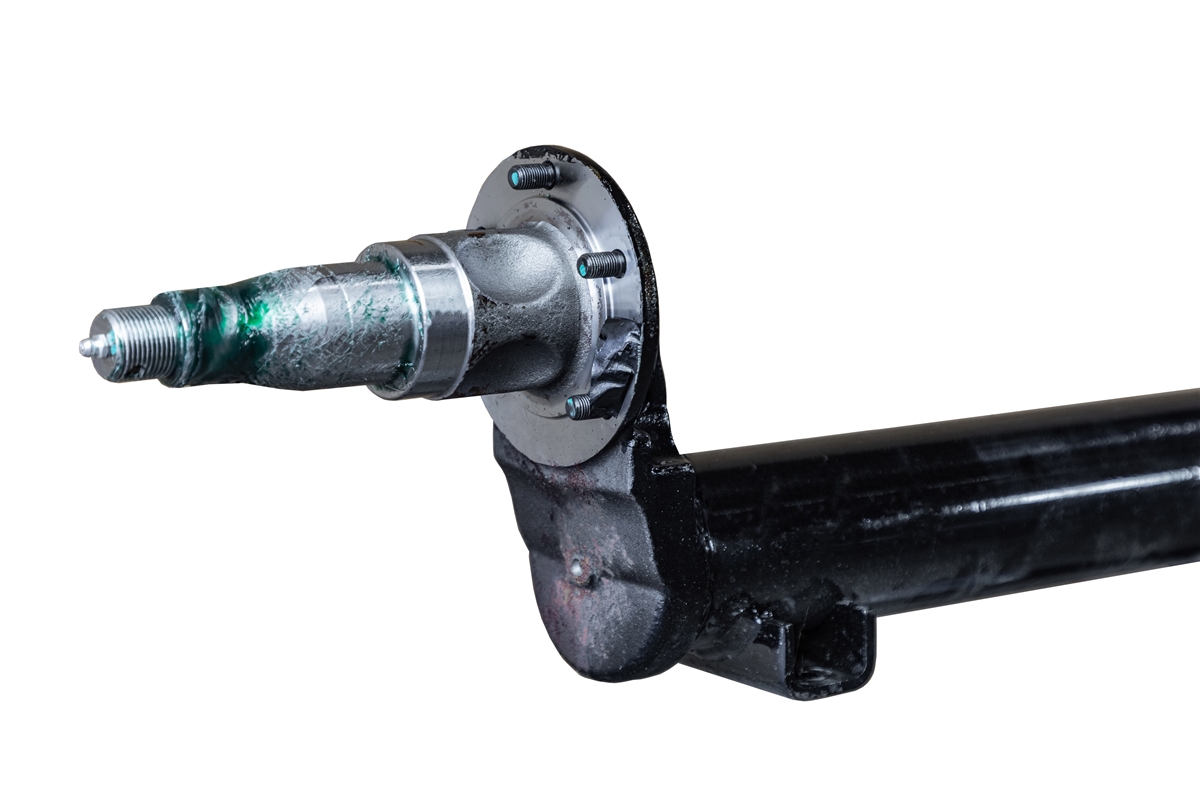

Spindle Size:
#42 with grease zerk

Inside components: NOT INCLUDED
Bearings: NOT INCLUDED
Inner: 25580
Outer: 14125A

Races: NOT INCLUDED
Inner: 25520
Outer: 14276

Grease seal: Part # 10-36 2.250" ID x 3.376" OD (NOT INCLUDED)

Main Specs:
Axle Weight rating: 7,000 lb. capacity

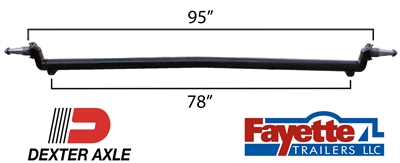

Hub Face to Hub face: 95"
Spring Center to Spring Center: 78"
Brake Flange: 5 Bolt for 12" x 2" brakes
Lubrication: Zerk lube spindles built with grease zerk
Part Number: 110054
