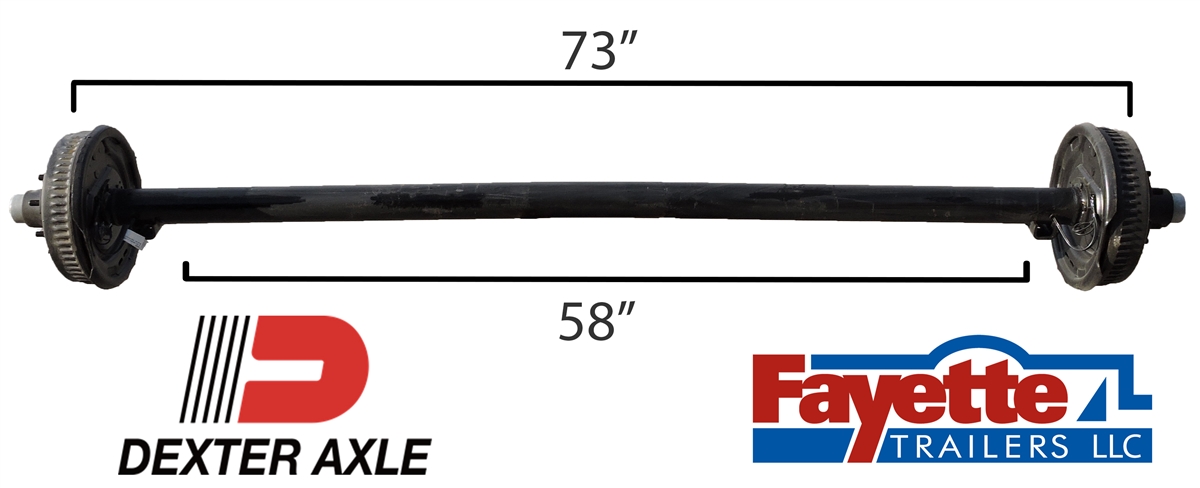

5,200 lb. Axle - Electric Brakes 73" Hub Face 58" Spring Center

5,200 lb. Axle - Electric Brakes 73" HF 58" SC

Alternative Views:

Our Price: $690.00

Stock Status:(In Stock)

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110165

Please Contact for shipping options Email : [email protected] or Phone : 717-473-4000

Description

5,200 lb. Trailer Axle w/Electric Brakes & Drums w/ 6 Studs -73" HF 58" SC
Straight axle with springs seats underneath the axle.
Weight rating: 5,200 lb. capacity

Cambered Axle Tube
3" outside diameter - light wall tubing

Spindle Size
#42 with grease zerk

Hub:
# 8-201-05 Drum with 1/2" wheel studs.

Inside components:
Brakes:
23-105 LH 12" x 2" electric brake
23-106 RH 12" x 2" electric brake

Bearings:
Inner: 25580
Outer: LM67048

Races:
Inner: 25520
Outer: LM67010

Grease seal: Part # 10-10 2.125" ID x 3.376" OD

Main Specs :
Weight rating: 5,200 lb. capacity
Hub Face to Hub face: 73"
Spring Center to Spring Center: 58"
Bolt Pattern: 6 lug on 5.5"
Wheel Stud Size: 1/2"
Brake Type: Electric Brakes 12" by 2"
Lubrication: Zerk lube spindles with grease zerk
