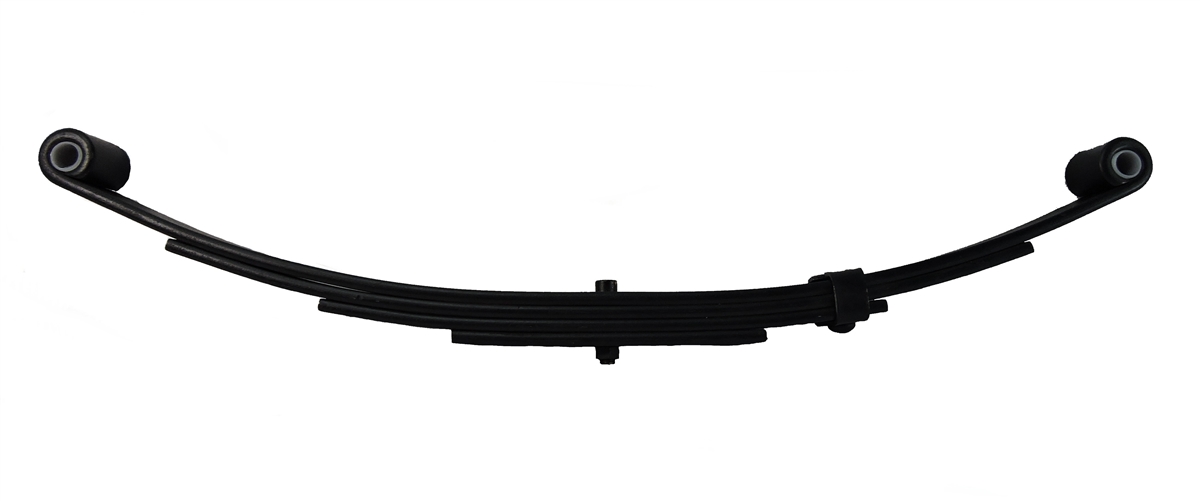

Double eye 4 leaf spring with a 1,750 lb capacity.
Multiple leaf spring will flex to absorb road shock and provide a smooth ride
Springs reduce wear and tear on your trailer
(2) 9/16" Nylon bushings included with spring
Can be used on 2,000-3,500 lb trailer axles
SPECS
Single Spring Capacity: 1,750 lbs
Axle Capacity 3,500 lbs
Thickness of Leaves: 5/16"
Number of Leaves: 4
Spring width: 1-3/4"
Spring length eye to eye: 25-1/8"
Spring Eye size: 9/16"
Manufacturer: Axletek
Construction: Steel
Finish: Black Paint
Part number: ML-042-00
Crossover part numbers: ML-042-00, 120100, SP-212275, UNA-212, PR4B
Installation Instructions:
- Eye of spring will attach by a 9/16" bolt to front hanger mounted to trailer or to shackle straps from equalizer.
- Rear eye will then attach by another 9/16" bolt to rear hanger or to shackle straps from equalizer
- Suggested to insert new suspension bolts and tighten to manufacturer's specs.
|
|
|
4 Leaf Double Eye Spring for 3,500 lb Trailer Axle
