3,500 lb. Axle - Electric Brakes w/ 5 on 5" -89" HF 74" SC

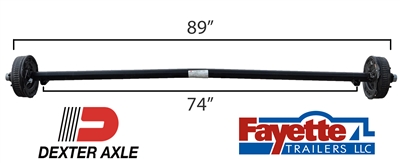

Complete 3,500 lb axle with electric brakes/drums w/ 5 studs on 5" spread

Alternative Views:
Our Price: $580.00

Stock Status:(In Stock)

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110160
Qty:

Description

Complete 3,500 lb. axle with electric brakes/drums w/ 5 studs on 5" spread
Straight axle with springs seats underneath the axle.
Found on most 77" wide PJ utility trailers.

Cambered Axle Tube
2-3/8" outside diameter

Spindle Size
#84 with grease zerk

Hub
# 84556 # 008-249-07 Drum / Hub with 1/2" wheel studs

Inside components:
Brakes:
23-26 LH 10" x 2-1/4" electric brake
23-27 RH 10" x 2-1/4" electric brake

Bearings:
Inner: L68149
Outer: L44649

Races:
Inner: L68111
Outer: L44610

Grease seal: Part # 10-19 1.719" ID x 2.565" OD

Main Specs:
Weight rating: 3,500 lb capacity
Hub Face to Hub face: 89"
Spring Center to Spring Center: 74"
Bolt Pattern: 5 lug on 5"
Wheel Stud Size: 1/2"
Brake Type: Electric Brakes 10" by 2-1/4"
Lubrication: Zerk-Lube spindles with grease zerk
