14" Silver Modular Wheel 5-lug on 4.5"

14" Silver Modular Wheel 5-lug on 4.5"

Alternative Views:


Our Price: $49.99

Stock Status:In Stock

Product Code: 17-145-SM
Qty:

Description

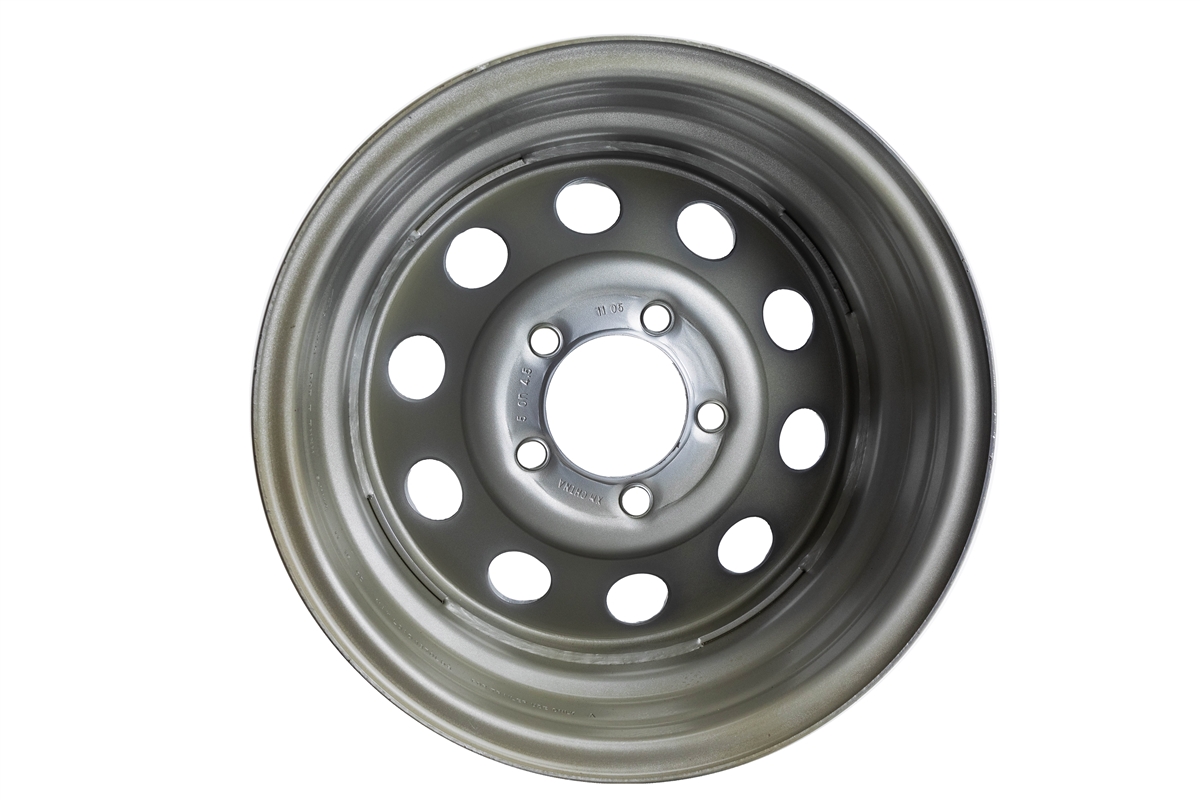

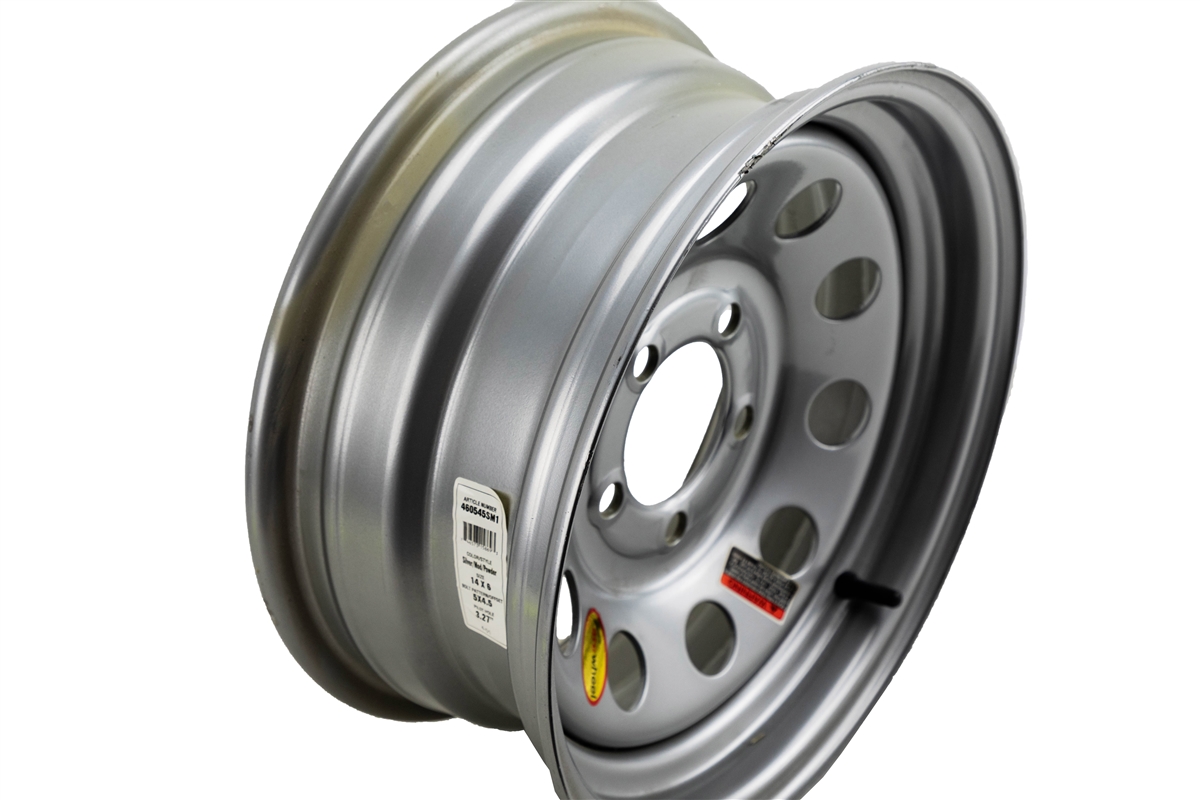

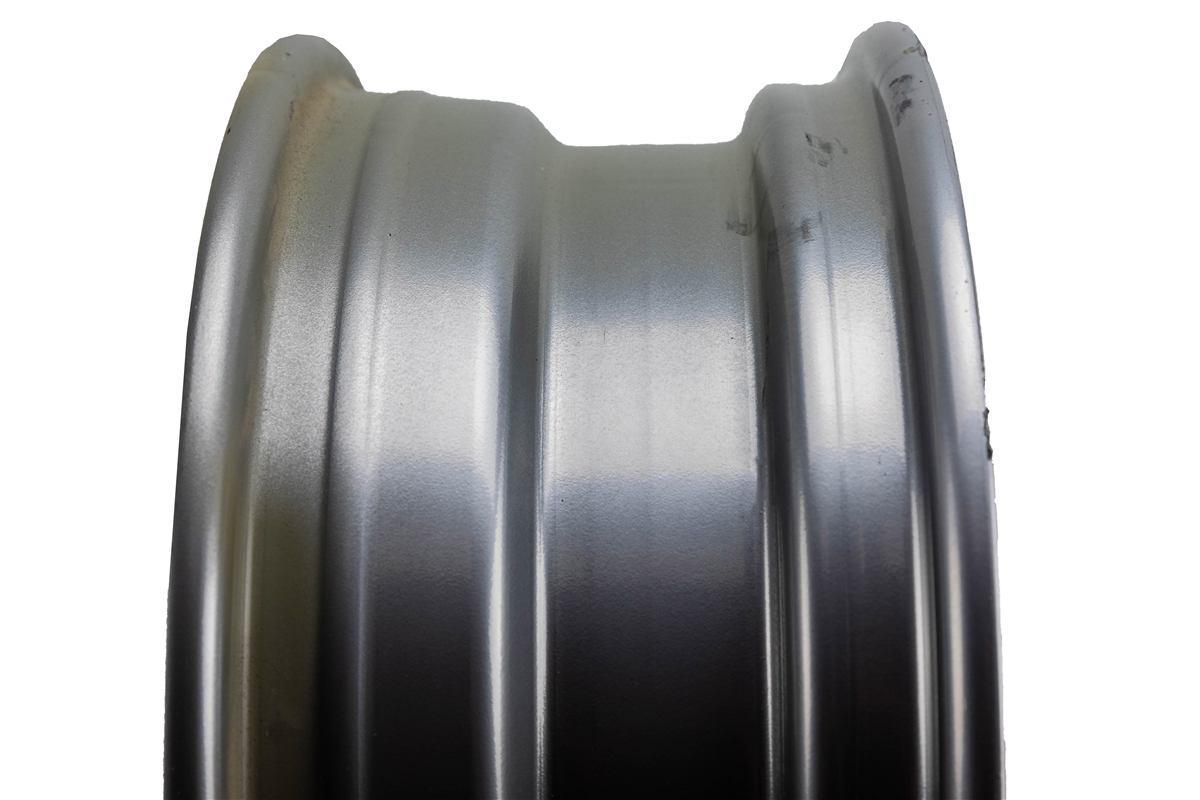

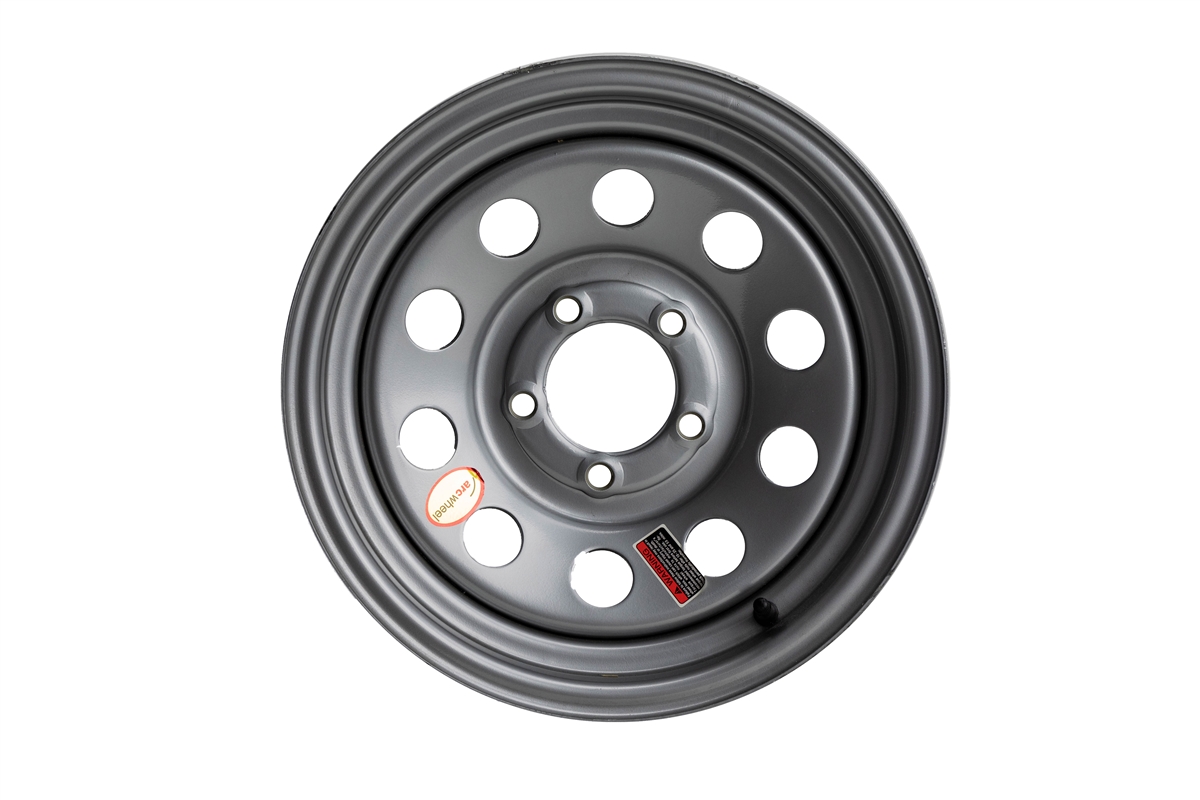

Silver Modular Trailer Wheel 14" x 6" 5-lug on 4.5" lug pattern. This wheel works on most 2,000 lb - 3,500 lb trailer axles with a 5 lug on 4.5" bolt pattern. The diagram below explains how to determine your bolt pattern.
- Features a high quality rust and corrosion resistant Enamel finish with a 3 step paint process
- A valve stem is included
- Improved torque retention (ITR) technology improves lug nut tightness and keeps the wheel secure to your trailer.
- Meets all SAE J1204 standards.

Main Specs:
- Construction : Steel
- Finish : Primer w/ Acrylic enamel topcoat
- Rim Dimensions: 14" x 6"
- Lug Pattern: 5-lug on 4-1/2" pattern
- Wheel lug stud size: 1/2"-20
- Weight Capacity: 1,870 lbs
- Pilot Diameter: 3.27"
- Design: Modular
- Finish : Silver
- Part number : 17-145-SM
